LITE DECKING BOARDS

with Eco 30 Joist and Adjustable Pedestal with Carrier

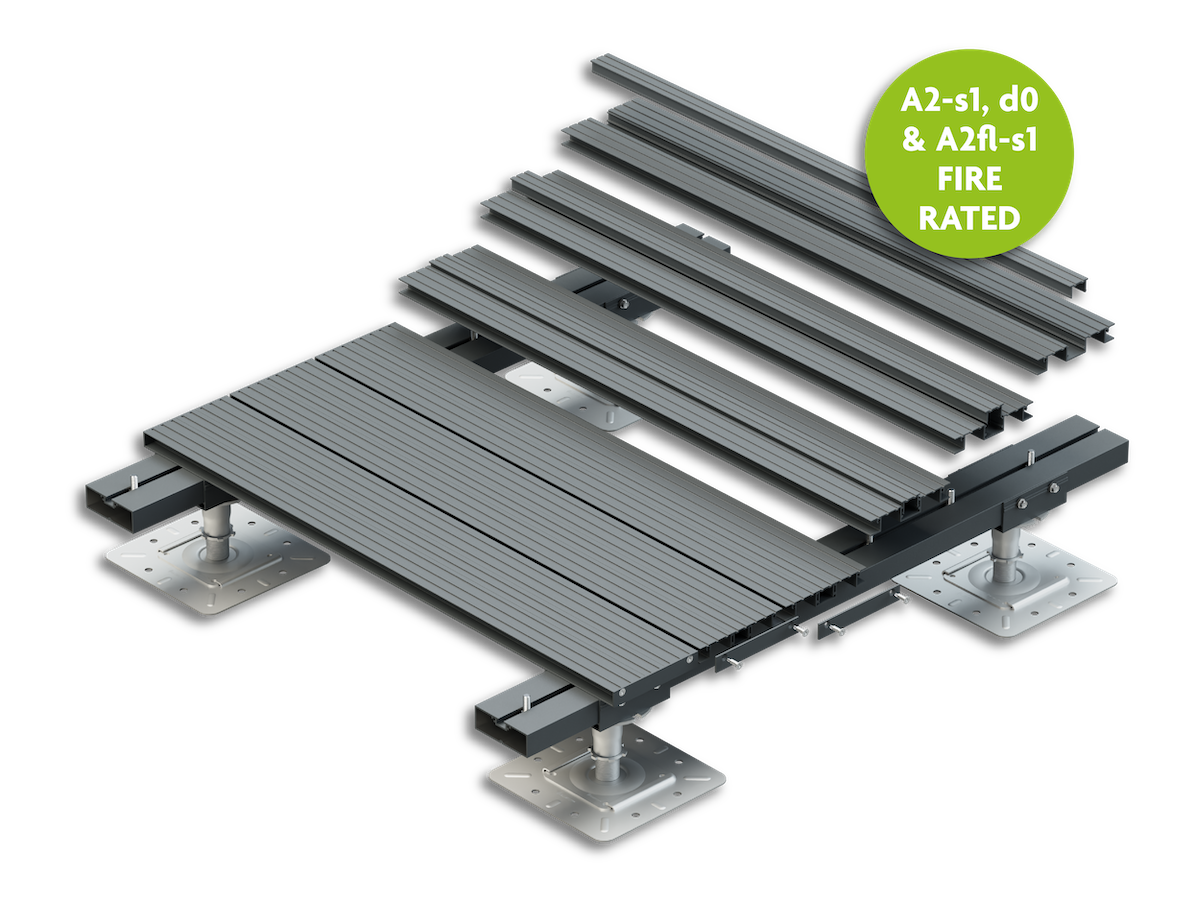

A comprehensive non-combustible deck system, comprising; 600mm span Lite decking board, 600mm span Eco 30 Joist, and a build-up height of 86mm to 335mm, using adjustable pedestal brackets with carrier.

System 7 Datasheet

↓ Click Button to Download
Datasheet

System Benefits:

Excellent Fire Performance
Drainage Compatible
Low Slip Potential
Fast Installation
Highly Aesthetic

Drainage systems available

In order to satisfy your warranty and insurance providers drainage requirements for balconies, terraces, and walkways, contact us today for project specific calculations..

Core components of System 7: Lite Decking Board, Eco 30 Joist & Adjustable Pedestal with Carrier

Lite Decking Board

AliDeck Lite Decking Boards are specifically designed for installations on steel or concrete balconies, terrace decks, or walkway areas.

Class-2-Balcony-Decking-Lite-Board-V2-Stack-1200

Boards can be cut to size along both the length and width.

Individual Decking Boards:

Length: 4 & 6 metres as standard (custom extruded lengths are also available)
Width: 120mm
Depth: 20mm
Weight: 1.295KG per linear metre
Span: Up to 600mm between supports on a 2kN point load (4kN distributed load)
Max. Decking Area: Unlimited

Lite Decking Board Benefits Include

FIRE RESISTANCE: The boards are manufactured completely from aluminium and are therefore fire resistant and non-combustible to A2-s1, d0 and A2fl-s1 when coated
DRAINAGE: They can also be spaced to allow for varying drainage requirements and are compatible with the AliDeck Balcony Drainage System
AESTHETICS: Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium

INSTALLATION: Speed and ease of installation are key to any project, so we have designed a board that has a simple clip down fixing system. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank
SLIP RESISTANCE: See table below.

Pendulum Test Values (PTVs) – Low Slip Potential 35+ | Moderate Slip Potential 25-35 | High Slip Potential 0-25

Please Note: The test is conducted 8 times, with the first three tests being ‘warm up tests’ the data then starts to be recorded upon the 4th test. The average is taken from the 5 tests and is shown in the column marked MEAN. The directions are; Length, Width & Diagonal. Each direction has a score depending on wet and dry conditions. Direction A is length, direction B is width, and direction C is diagonal. The tests were carried out in accordance with BS7976 part 2. The full test report is available on our downloads page.

AliDeck Eco 30 Joist

The AliDeck Eco 30 Joist is an integral part of the AliDeck System. This extrusion is designed to act as a support and a joist for the complete range of AliDeck boards for use on steel or concrete balconies, terrace and walkway decking areas that require adjustable heights. This joist works in conjunction with the AliDeck Adjustable Pedestals and the rest of the AliDeck board range.

Spans max: Up to 600mm
Fire Rated: A1 (mill finish), A2-s1, d0 & A2fl-s1
Weight: 1.187kg per linear metre
Coating Thickness: 60-80 Microns
Colours: Full Range of AliDeck Colours
Stock Extrusion Length: 6m
Warranty: 30 Years
Life Expectancy: 60 Years

The Eco 30 Joist can span a maximum of 600mm between pedestals on a 4kN distributed loading

Eco 30 joist is our value engineered low-profile support bearer, specifically designed for installations that require extremely low build-up in the most cost effective manor.

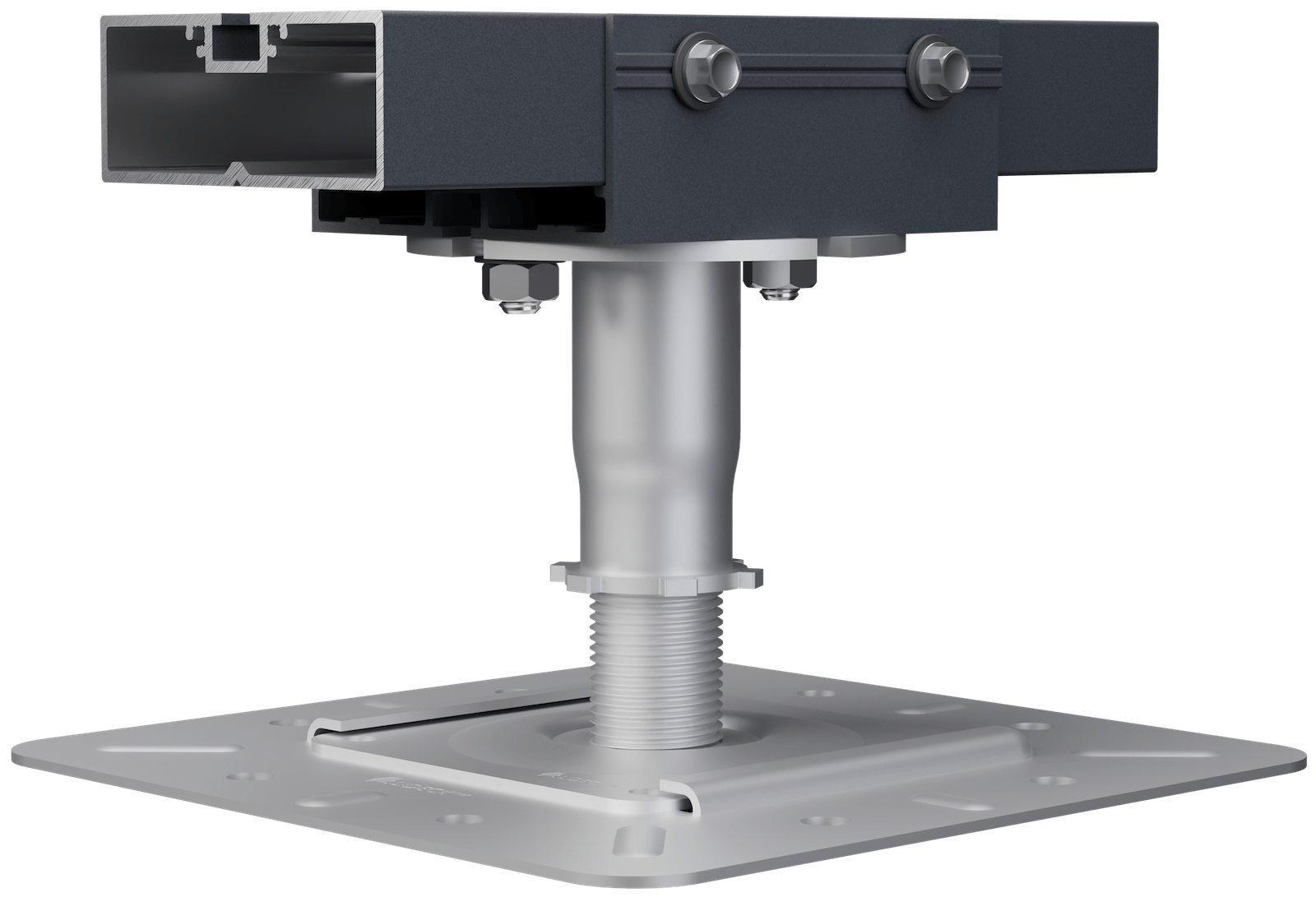

Adjustable Pedestal with Carrier

Adjustable Pedestal with carriers are a value-engineered product specially designed to offer complete flexibility across an installation with a build-up height minimum of 86mm and maximum 335mm. This A fire rated product works seamlessly with all of our joists.
