Non Combustible Decking Systems

Non combustible decking systems are available to suit your exact requirements, with cost, application and performance in mind. Board spans range from 600mm to 1800mm, joist spans range from 300mm to 3500mm and build-up heights range from 40mm to 1000mm or higher.

Click below to view our most popular AliDeck systems.

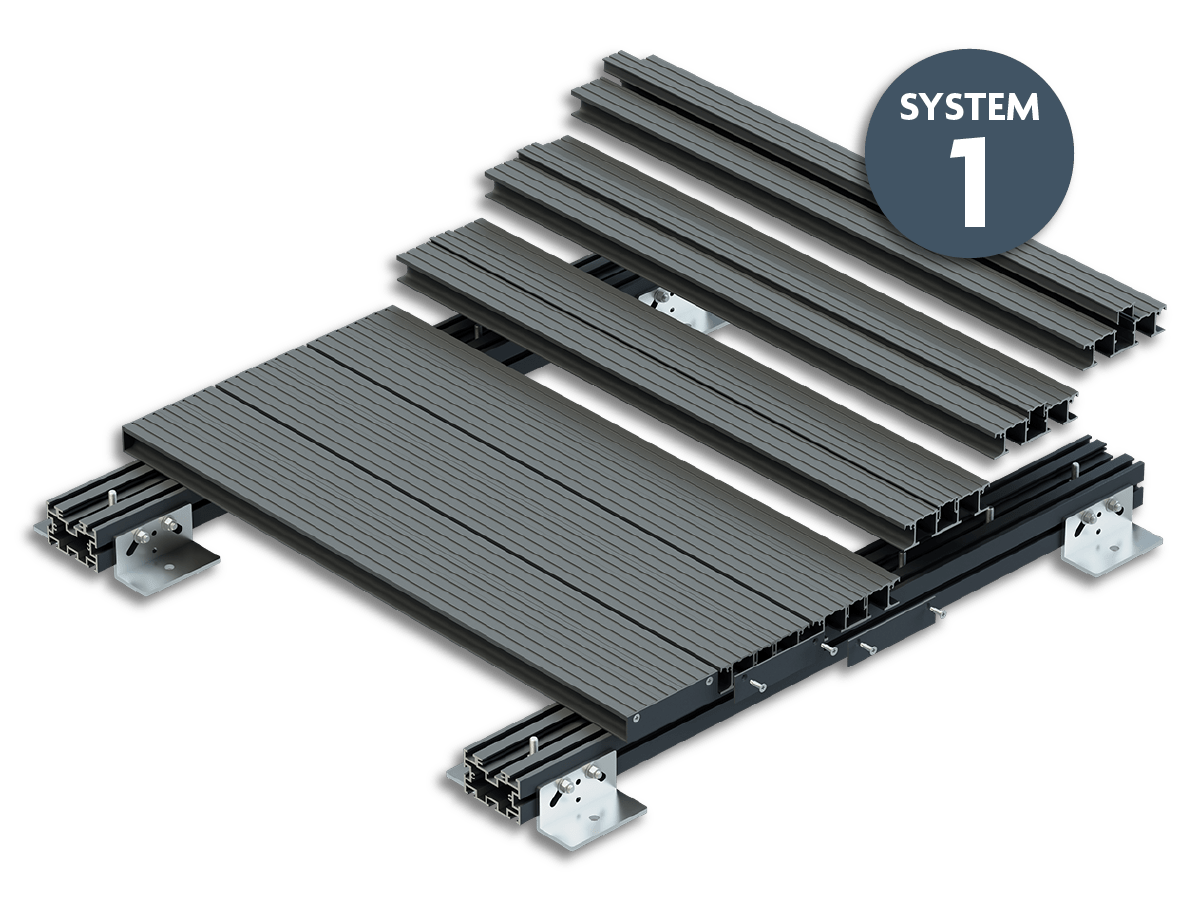

Non Combustible Decking Systems by AliDeck

Senior Board, Low Joist & Adjustable Pedestal Brackets

  • Board Span: 1200mm
  • Joist Span: 1200mm

  • Build-Up: 80-330mm
Non Combustible Decking Systems by AliDeck

Junior Board, Low Joist & Adjustable Pedestal Brackets

  • Board Span: 800mm
  • Joist Span: 1200mm

  • Build-Up: 70-320mm

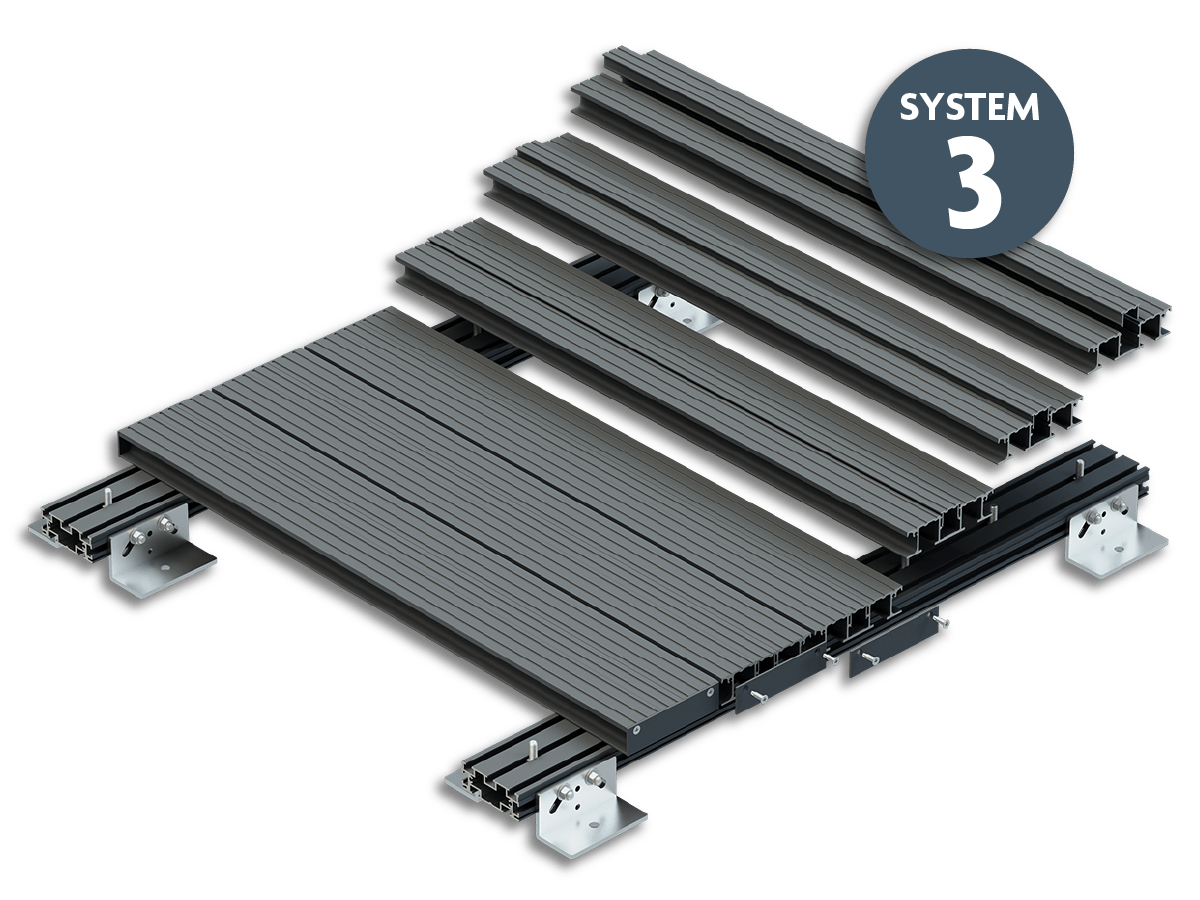

Non Combustible Decking Systems by AliDeck

Senior Board, Lite Joist & Adjustable Pedestal Brackets

  • Board Span: 1200mm
  • Joist Span: 800mm

  • Build-Up: 60-330mm

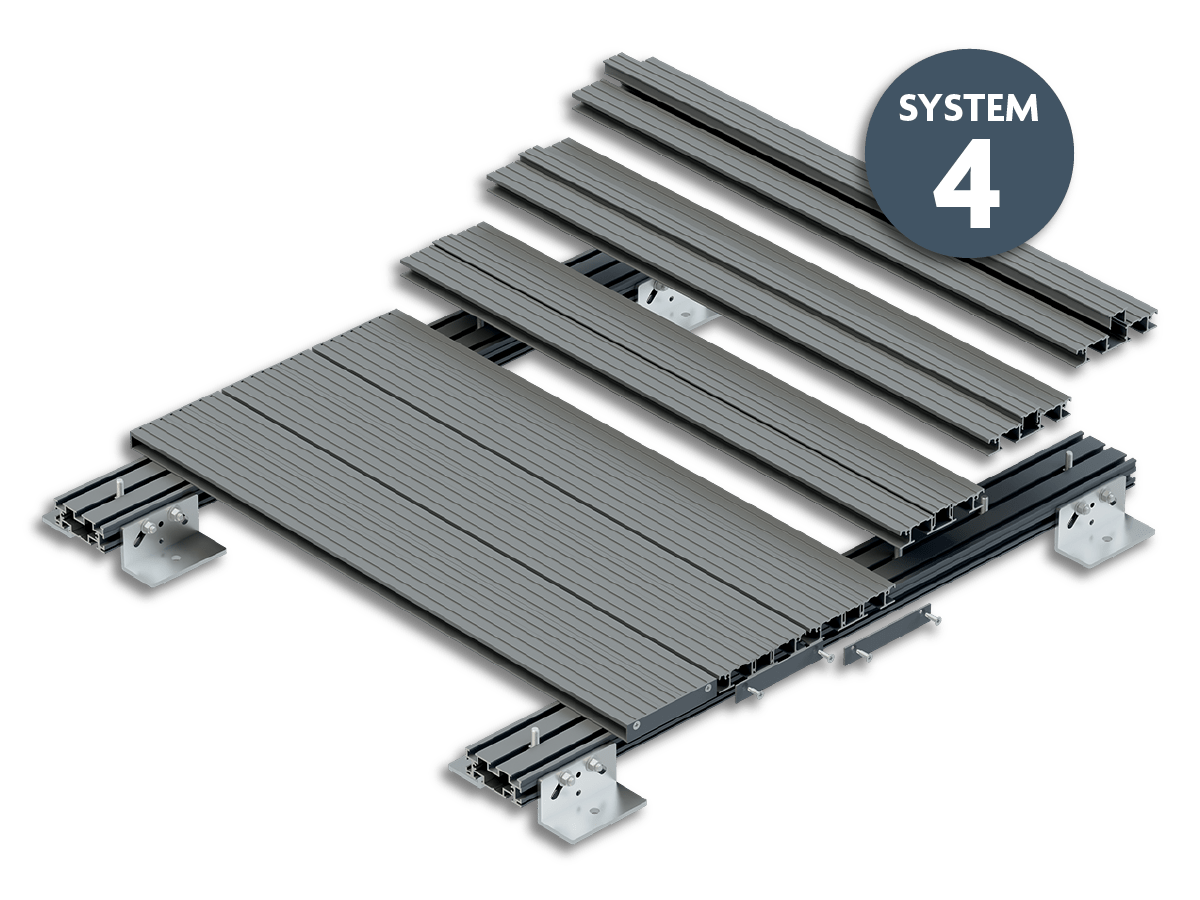

Non Combustible Decking Systems by AliDeck

Junior Board, Lite Joist & Adjustable Pedestal Brackets

  • Board Span: 800mm

  • Joist Span: 800mm

  • Build-Up: 50-320mm

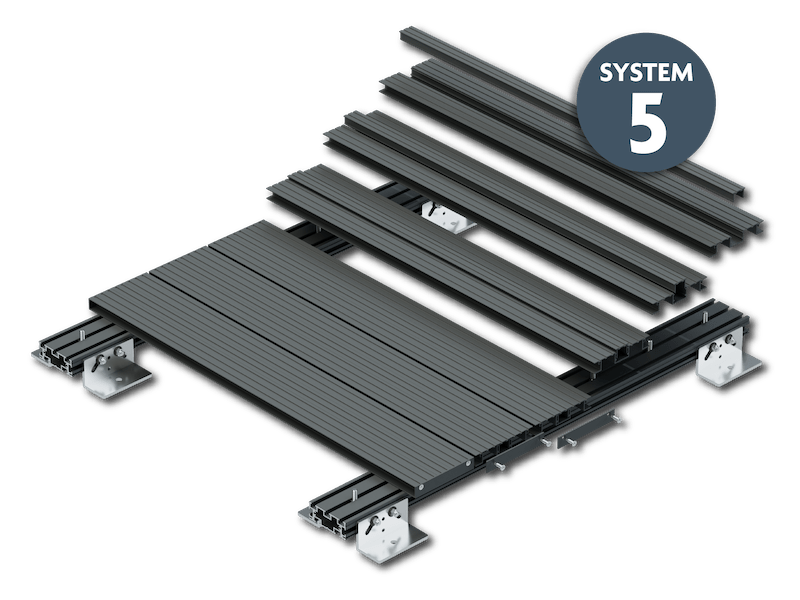

Non Combustible Decking Systems by AliDeck

Lite Board, Lite Joist & Adjustable Pedestal Brackets

  • Board Span: 600mm

  • Joist Span: 800mm

  • Build-Up: 50-320mm

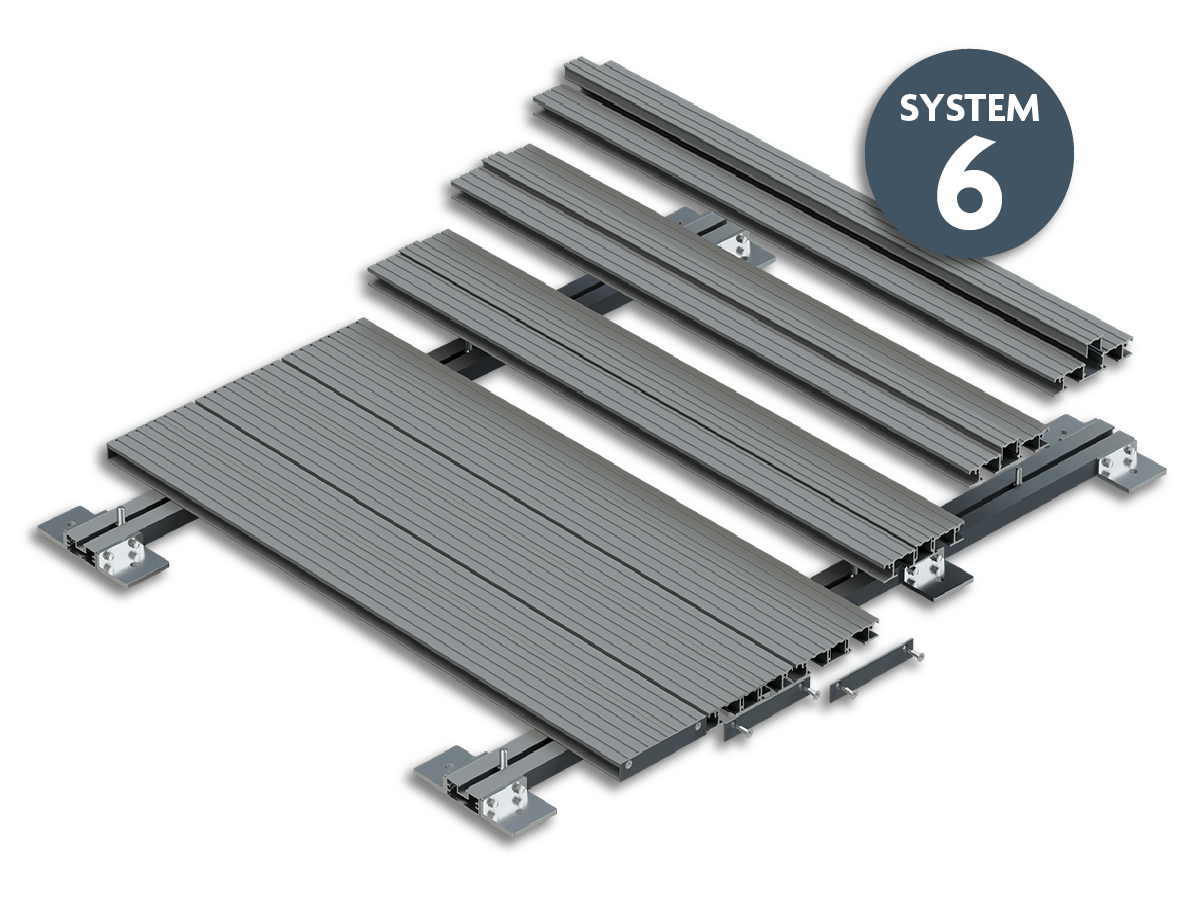

Non Combustible Decking Systems by AliDeck

Junior Board, Micro Joist & Micro Joist Pedestal Brackets

  • Board Span: 800mm

  • Joist Span: 300mm

  • Build-Up: 40mm

Non Combustible Decking Systems by AliDeck

Lite Board, Eco 30 Joist & Adjustable Pedestal with Carrier

  • Board Span: 600mm

  • Joist Span: 600mm

  • Build-Up: 86-335mm

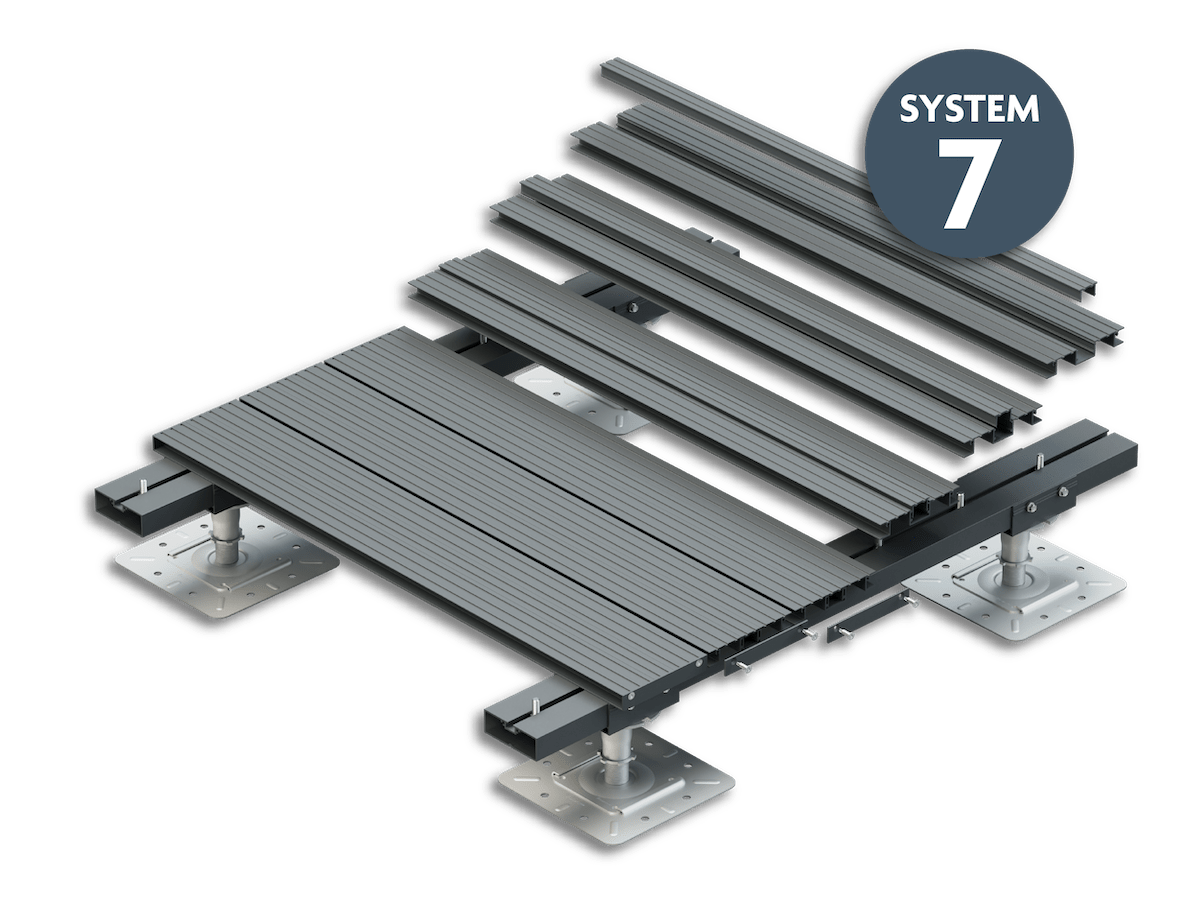

Non Combustible Decking Systems by AliDeck

Lite Board, Eco 50 Joist & Adjustable Pedestal with Carrier

  • Board Span: 600mm

  • Joist Span: 1000mm

  • Build-Up: 106-355mm

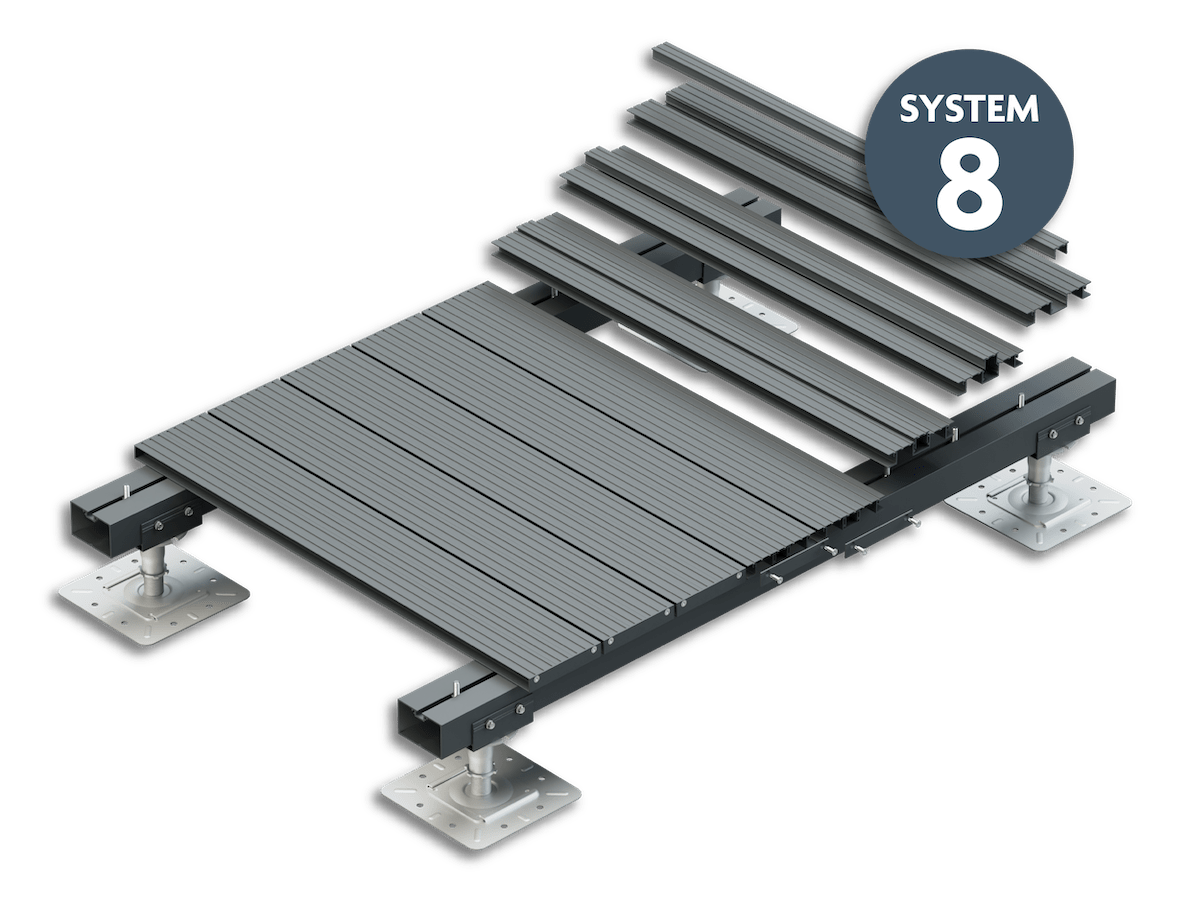

Non Combustible Decking Systems by AliDeck

Junior Board, Eco 50 Joist & Adjustable Pedestal with Carrier

  • Board Span: 800mm

  • Joist Span: 1000mm

  • Build-Up: 106-355mm

AliDeck Balcony Systems Specification

  • Fire resistant: A2-s1, d0 and A2fl-s1
  • Board slip resistant in the wet
  • Coating thickness – 60-80 microns
  • Impact test – with an energy of 2.5Km to ensure that the coating adheres to the substrate to EN ISO 6272 / ASTM D2794
  • Bend test – on 5mm mandrel to ensure adhesion after bending to EN ISO 1519
  • Machu Test (accelerated corrosion test) – in a solution made up of sodium chloride acetic acid and hydrogen peroxide at 37 degrees C Duration 48 hours
  • Qualicoat 2.4.1. – cross hatch cuts are made at 2mm spacings with one being at 90 degrees to the other cut, tape is the applied left for 2 minutes and removed to check for adhesion of paint (EN ISO 2409 2013)
  • Qualicoat 2.18 – sawing and drilling test to ensure no flaking after cutting (using sharp tools)
  • Acid salt spray test – ISO 9227
  • EN ISO 3231 – Resistance to humid atmospheres containing Sulphur Dioxide
  • EN ISO 11341 – Accelerated weathering test
  • EN ISO 20810 – Natural weathering test (Florida Test) (Carried out on Powder Type)
  • EN ISO 12206-1 – Resistance to mortar (Carried out on powder type)
  • EN ISO 6270 – 2 – Constant climate condensation water test
  • Board slip resistance in the dry – see table above

The AliDeck aluminium decking boards are 50% quicker to install compared to other decking systems on the market. This is because you only need to install the AliDeck Joists or support system up to every 1000mm on a 2.0kN loading in accordance with BS8579:2020.

The boards are constructed completely from 100% aluminium (6063 T6 grade), up to 67% of which has been recycled to make these boards eco-friendly and much better for the environment.

Due to the fact that AliDeck is aluminium and finished using the 7 stage Qualicoat system, little or no maintenance is required. General grime can be removed simply with a damp, lint free cloth or mop with warm soapy water.

The decking is supplied with a 30 year warranty against splitting, cracking, warping, splintering, rotting, twisting and material or manufacturing defects. It has a minimum 60 year life expectancy.

The planks are coloured using the Qualicoat powder coating finish. Qualicoat is a quality label organisation committed to maintaining and promoting the quality of coating on aluminium and its alloys for architectural applications.

AliDeck Boards and Joists are available in our full range of standard colours. Please refer to our Standard Colour Range datasheet for colour options (available at www.alideck.co.uk/ downloads). Non-standard colours are available on request as special orders, but may affect cost and lead-time.
The Joists can be
supplied non-coated/mill finish to achieve A1 fire rating.
