AliDeck Aluminium Decking Ultra Board
The AliDeck Ultra Balcony Decking Board is our extra-wide non-combustible aluminium deck board. It has been designed as a quick-fit solution for easy installation, delivers excellent span of up to 800mm to comply with BS8579:2020 (2.0kN point load with maximum allowable deflection of 5mm), has a fully aluminium construction, is fire resistant, and comes with our 30-year warranty.
AliDeck aluminium metal decking boards are treated with a special Qualicoat powder-coating process which colours the boards in a choice of our full range of AliDeck colours. This finish along with the aluminium construction gives the boards fire ratings of A2-s1, d0 and A2fl-s1 which means they are non-combustible, provide no contribution to fire, and are fully compliant with all relevant regulations and legislation.
Technical Downloads
Datasheets
Download DatasheetsDatasheets
CAD DWG
Download DWGCAD DWG
Installation
Download Install GuideInstallation
Standard Colours
Woodgrain Colours

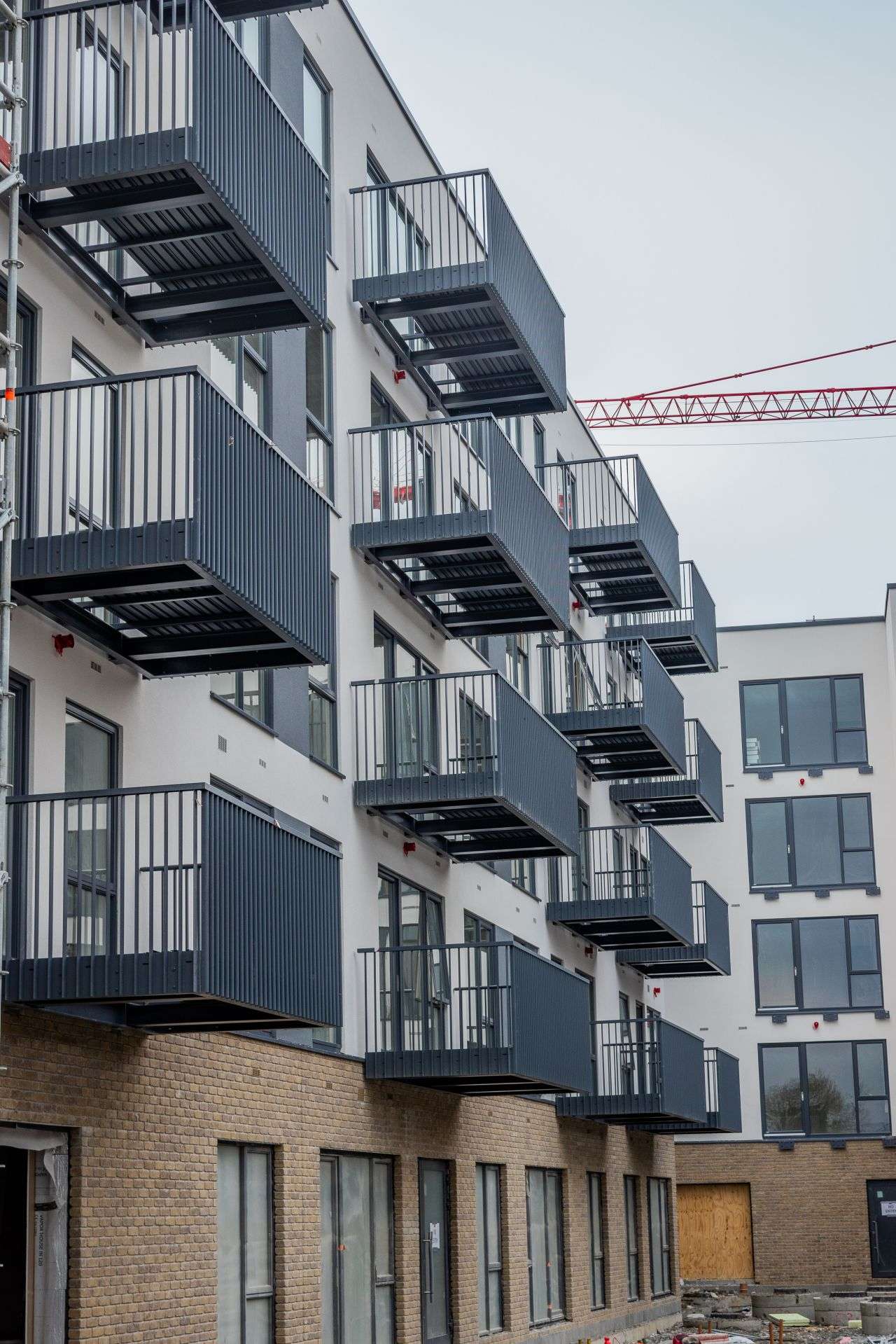

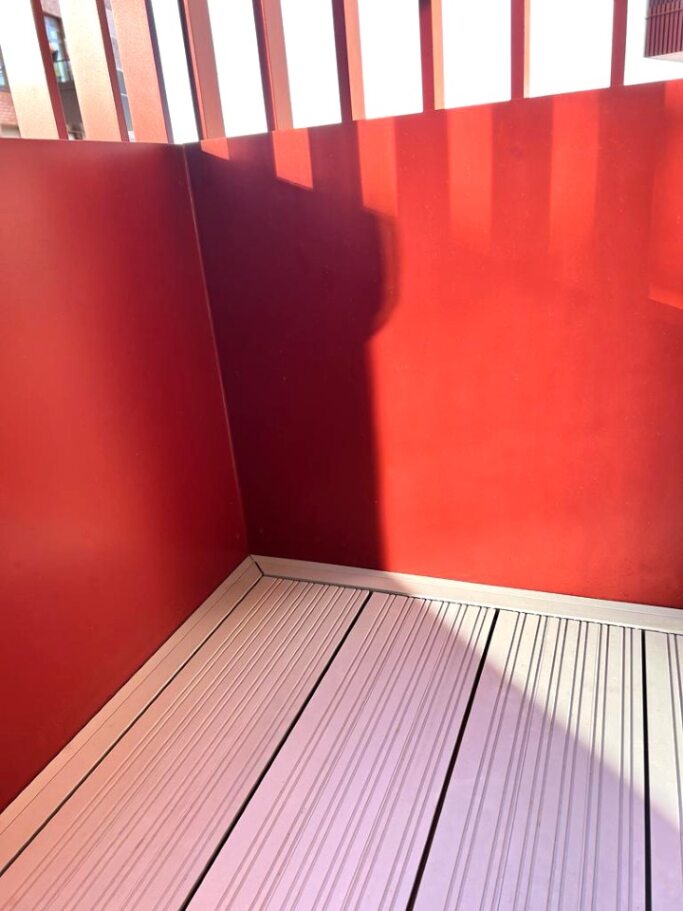

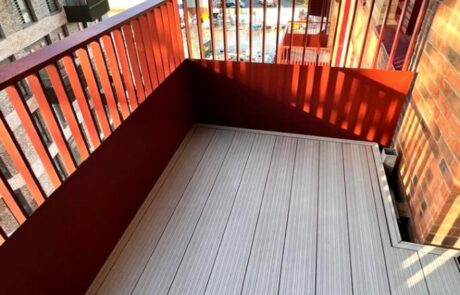

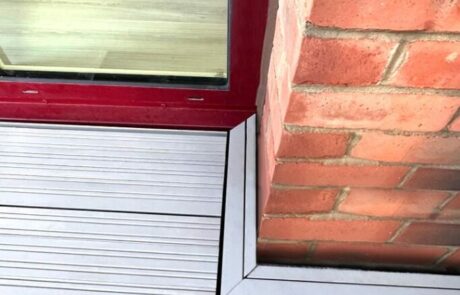

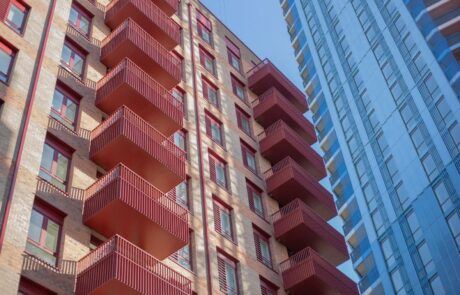

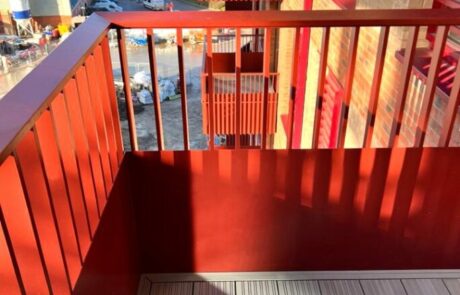

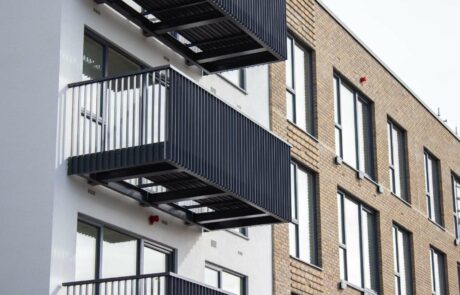

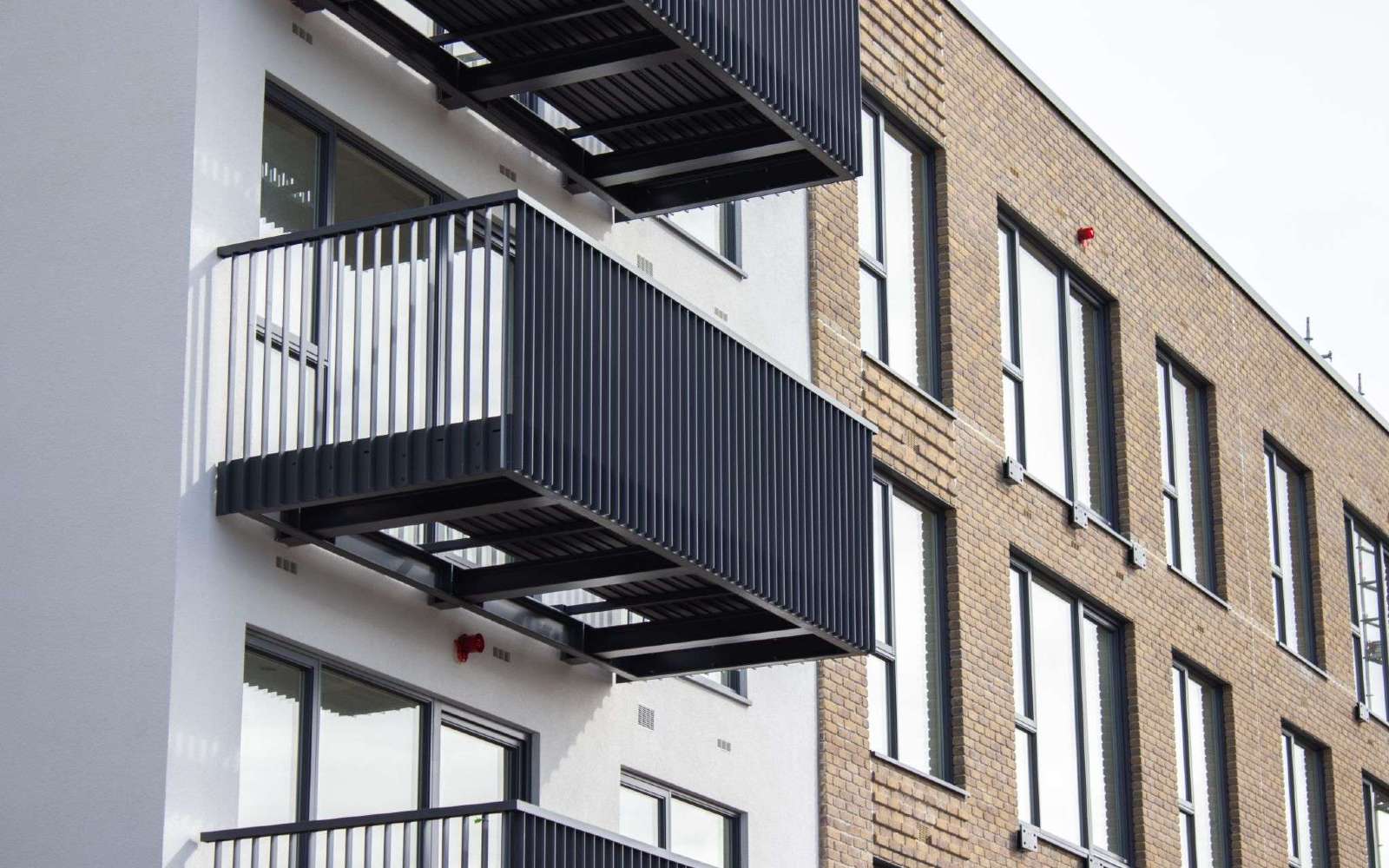

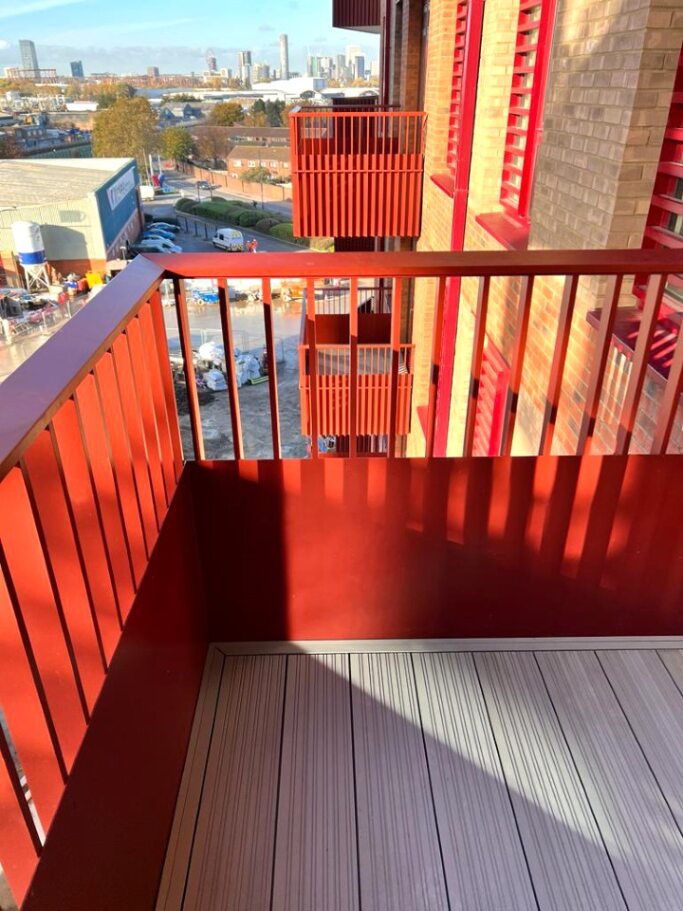

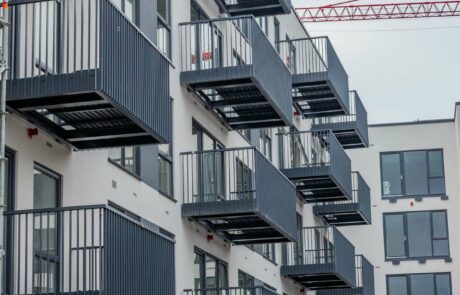

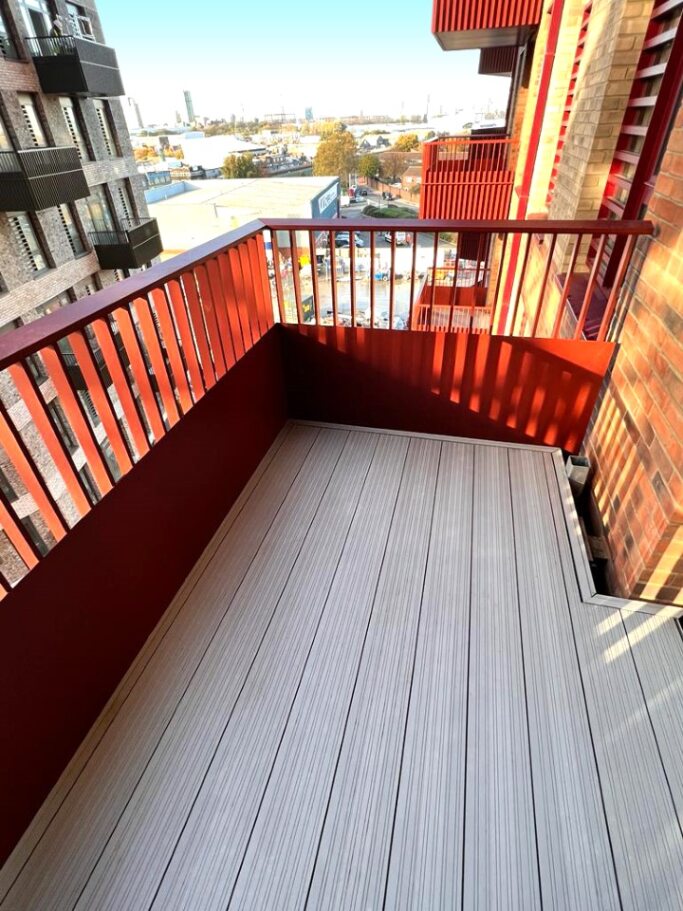

Fire Resistant Aluminium Metal Decking for Balconies, Terraces and Walkways with the AliDeck Ultra Board range

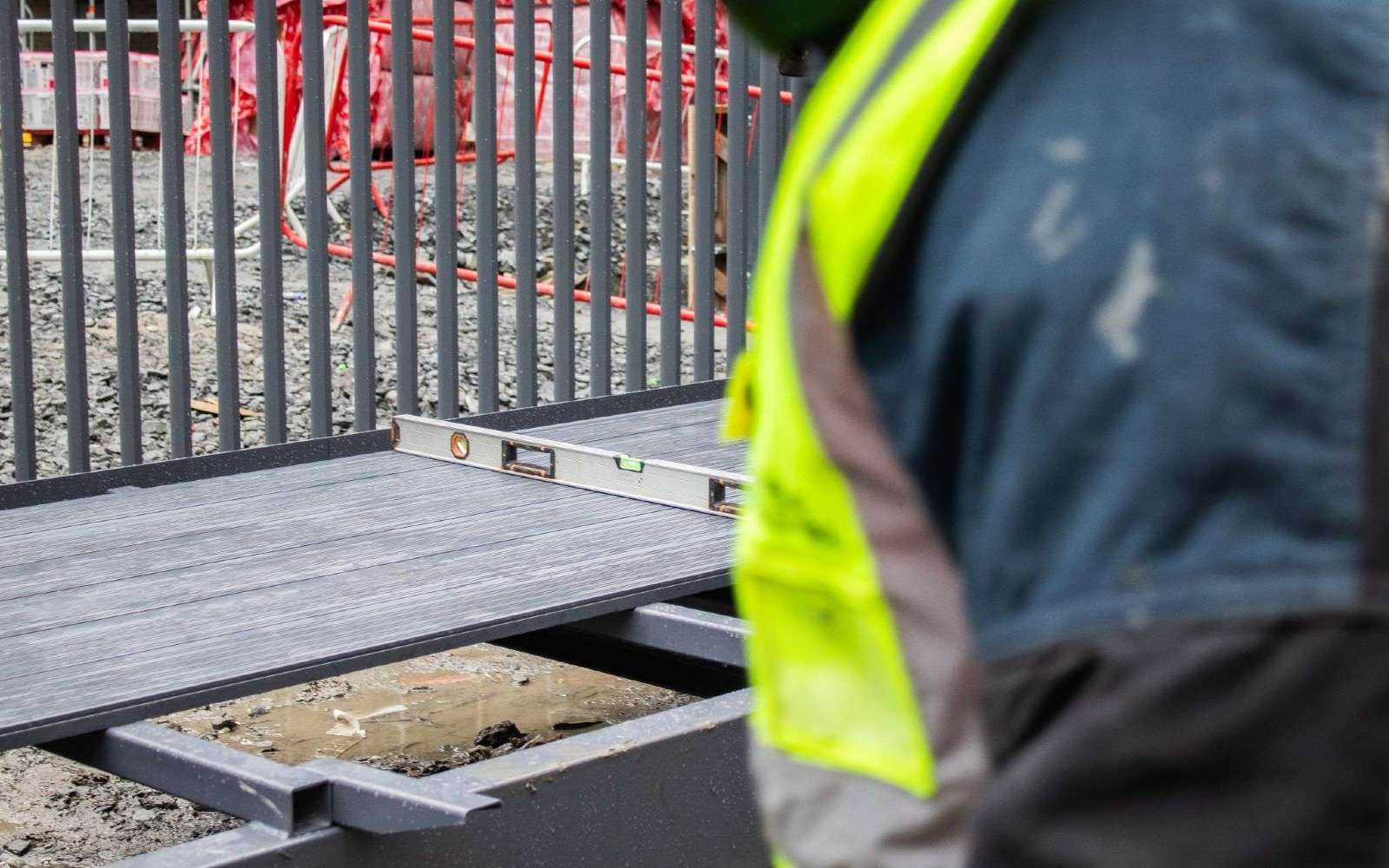

Installation

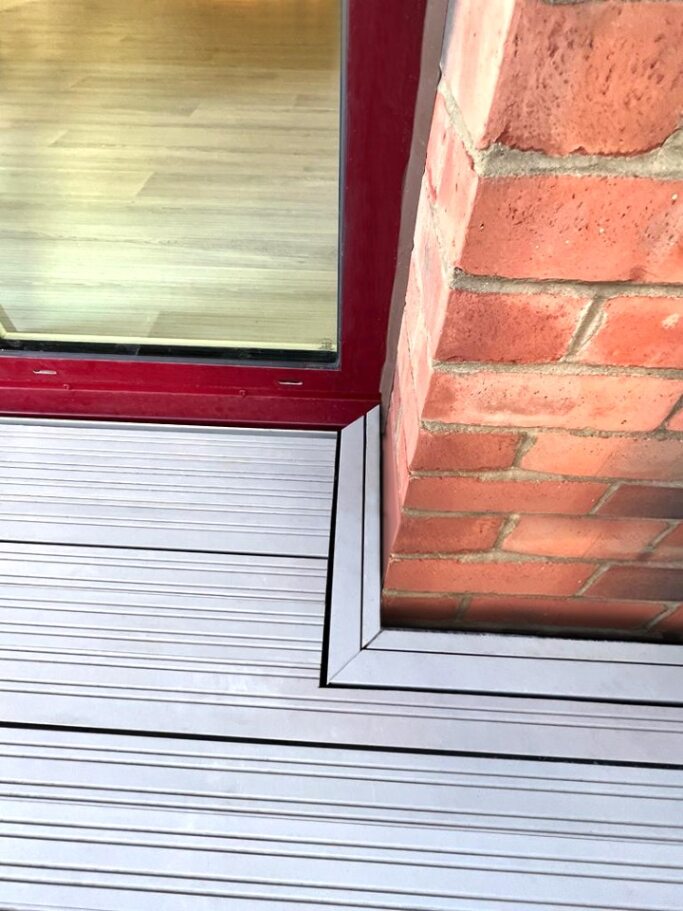

Speed and ease of installation are key to any project, so we have designed a board that has a unique invisible (structural) top clip system which can be installed from the top down. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank. The boards can be cut to size along both the length and width.
The AliDeck Ultra Board has a 60mm concealed fixings channel which is ideal for placement of lifting eyes to allow for craning completed balconies into place with all boards in-situ.
Drainage
The Ultra Board has a built-in Drainage Channel for effective water management
Aesthetics
Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium.
Colour Options
The decking boards are available in the full AliDeck range of Qualicoat powder-coat colours.
Systemisation
All AliDeck aluminium decking boards are fully compatible with all AliDeck Joists.
Construction
The boards are constructed completely from 100% aluminium (6063 T6 grade), up to 67% of which has been recycled to make these boards eco-friendly and much better for the environment.
Maintenance
Due to the fact that AliDeck is aluminium and finished using the 5 stage Qualicoat system, little or no maintenance is required. General grime can be removed simply with a damp, lint free cloth or mop with warm soapy water.
Protective Finish
The planks are coloured using the Qualicoat powder coating finish. Qualicoat is a quality label organisation committed to maintaining and promoting the quality of coating on aluminium and its alloys for architectural applications.
Warranty
The decking is supplied with a 30 year warranty against splitting, cracking, warping, splintering, rotting, twisting and material or manufacturing defects. It has a minimum 60 year life expectancy.
