AliClad Eco Flow Non-combustible Soffit Cladding System
The AliClad Eco Flow aluminium soffit cladding system is a complete solution for all balcony underside requirements on steel cantilever projecting balconies.
Consisting of extruded aluminium components for high strength and low weight, AliClad Eco Flow’s kit-form construction provides excellent versatility and a solution for all requirements, while delivering our most cost-effective soffit cladding system to date.
Manufactured as extruded aluminium boards, AliClad fixes directly to the steel framework for ultra-fast installation whilst providing a simple but elegant solution to conceal the balcony internals.
600mm
Span
150mm
Board Width
30 Years
Product Warranty
60 Years
Expected Lifespan
67%
Recycled Content
All Aluminium
Heat Resistant
Durable Finish
Low Maintenance
Recyclable
Weather Stable
Colour Matched
A2 Fire Rated
Multiple Drainage Options
Benefits of AliClad Eco Flow Soffit Cladding System
The AliClad Eco Flow aluminium soffit cladding system is a complete solution for all balcony underside requirements on steel cantilever projecting balconies.
- Easy-install interlocking soffit boards
- Drainage integrated, works in conjunction with deck-level drainage
- Board width: 150mm
- Board length: Up to 6000mm
- Material: Structural Grade Aluminium 6063 T6
- Warranty: 30 Years* (postcode dependent)
- Life Expectancy: 60 Years
- Span: 600mm
AliClad Eco Flow in NBS Source
Cladding Standard Colours
These 15 colours are standard for cladding products.
Note: Non-standard colours available via POA (Price on Application).
Click any colour for details

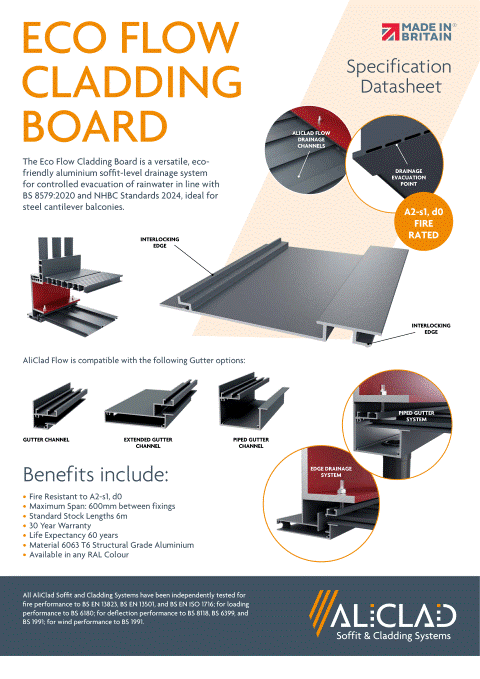

AliClad Eco Flow – Soffit Install Guide
Non-combustible soffit cladding solution for balconies with AliClad Eco Flow
Installation: Speed and ease of installation is essential to the success of your balcony project. AliClad has been designed to integrate seamlessly with the AliDeck Aluminium Decking System and the AliRail Aluminium Balcony Balustrade System, and is supplied in kit-form for simple and quick installation.
Safety: AliClad is A2-s1, d0 fire-rated when coated and is fully-compliant with all applicable legislation.
Construction: AliClad is constructed from 100% aluminium (6063 T6 grade), up to 67% of which has been recycled to make these products eco-friendly.
Maintenance: Finished to Qualicoat-standard powder-coat, zero maintenance beyond simple cleaning is required.
Warranty: AliClad is supplied with a 30-year warranty* (postcode dependent)* (postcode dependent) against splitting, cracking, warping, splintering, rotting, twisting and material or manufacturing defects. It has a minimum 60 year life expectancy.
General AliClad Soffit Cladding System FAQ
The maximum allowable span for AliClad Lite is 1000mm between fixings.
All AliClad products have been tested and certified as fire resistant to A2-s1, d0 according to relevant BS EN standards.
Each AliClad Lite board is 6 metres in length, 120mm in width, and 10mm in depth. The boards can be cut to size along both length and width.
AliClad Lite is a lightweight, non-combustible aluminium cloaking soffit designed for balconies or soffits. It offers exceptional fire resistance and a quick-fit design for diverse architectural needs.
Yes, AliClad products are available in any RAL colour. Standard and non-standard colour options are available, with the latter potentially affecting cost and lead time.
AliClad products come with a 30-year warranty* (postcode dependent) against splitting, cracking, warping, splintering, rotting, twisting, and material or manufacturing defects. They have a minimum life expectancy of 60 years.
AliClad Flow and AliClad Decor require support when the span exceeds 1200mm. AliClad Lite’s maximum span between supports is 1000mm.
AliClad Flow boards are available in two profile widths 120mm and 240 mm. Each board is available in standard length of 6 metres and a 12.5mm depth. The boards can be cut to size along both length and width.
Soffit cladding provides a neat aesthetic finish to a balcony underside by concealing the internal structure from view. Having an imperforate layer in the soffit also helps to prevent fire and smoke spread, as well as prevents any debris or water from falling to balconies below.
AliClad products require minimal maintenance. General grime can be removed with a damp, lint-free cloth or mop with warm soapy water.
Full installation guides for all AliClad products are available on the AliDeck website at www.alideck.co.uk.
AliClad Flow is a versatile, lightweight aluminium soffit-level drainage system designed for controlled rainwater evacuation, ideal for steel cantilever balconies.
AliClad products are made from 6063 T6 structural grade aluminium, with up to 30% recycled content, making them eco-friendly and sustainable.
AliClad Flow is our balcony soffit water-management solution, designed to provide compliant edge-drainage as far from the building as possible at the front edge.
AliClad is a range of aluminium soffit and cladding systems designed for use in balconies, soffits, walls, and ceilings. They are known for their fire resistance, durability, and low maintenance requirements.
Soffit cladding is the cladding used to conceal the underside of balconies.
Each AliClad Decor board is 6 metres in length, 100mm in width, and 45mm in depth. The boards can be cut to size along both length and width.
The maximum allowable span for AliClad Decor is 2000mm between fixings.
AliClad is available in three types; AliClad Flow, AliClad Decor, and AliClad Lite.
AliClad Flow is compatible with several gutter options, including gutter channels, extended gutter channels, and piped gutter channels for efficient water management.
Yes, edge drainage as provided by AliClad Flow is compliant with the requirements of BS8579:2020.
The maximum allowable span for AliClad Flow is 1200mm between fixings.
AliClad Decor is a premium, non-combustible aluminium cladding board designed for vertical or horizontal applications on soffits, walls, and ceilings. It combines aesthetic appeal with safety and durability.
