AliFacade A1/A2 Fire Rated Cladding System

Elevate your facade projects with our premium AliFacade Cladding System, meticulously engineered from high-quality aluminium and stainless steel to enhance safety, aesthetics, and longevity. Fire tested A1/A2, for complete peace of mind.

“Developed by a team of industry specialists, the AliFacade cladding system establishes new benchmarks for performance excellence”

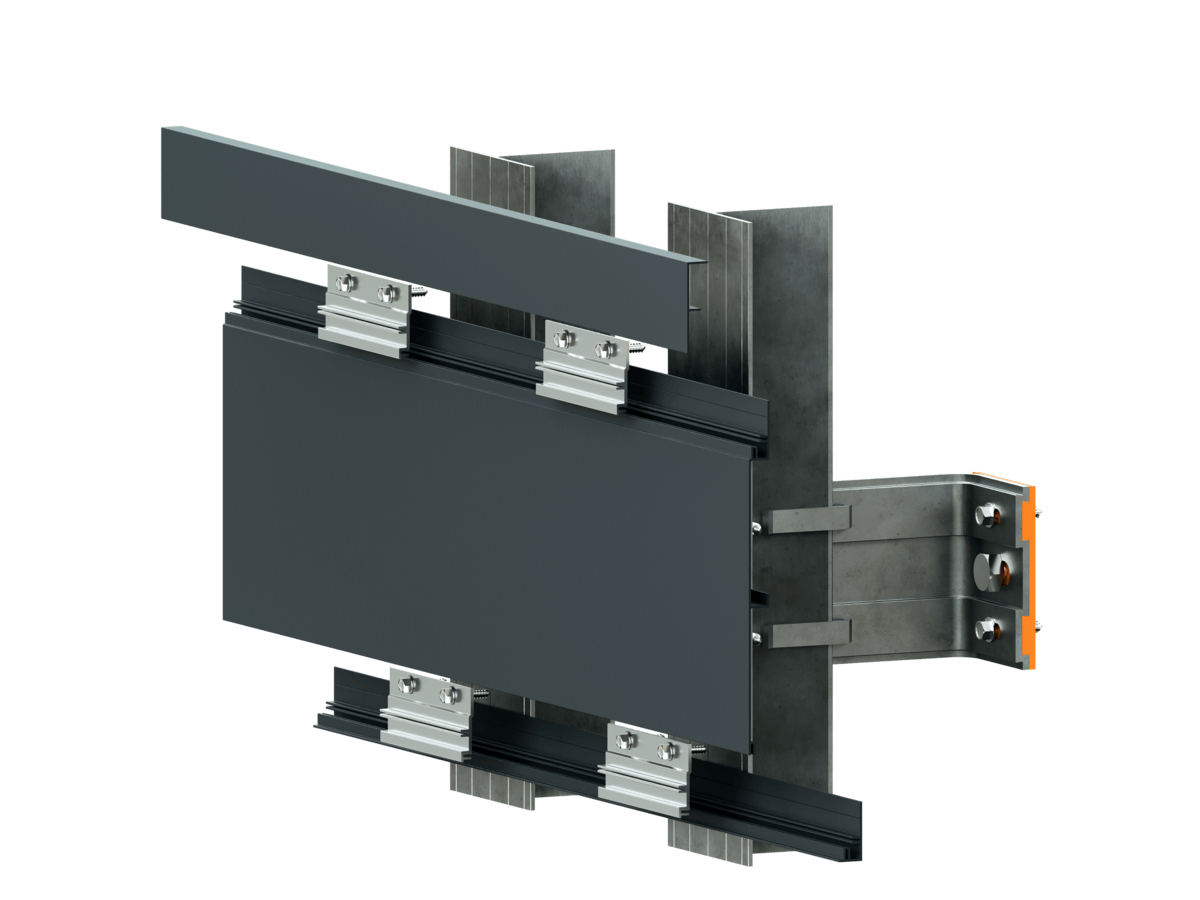

AliFacade-Fascia-Cladding-Sidings-Brackets-130-Explode-1-v1

Why Choose The AliFacade Cladding System?

  • UNCOMPROMISING SAFETY: Our commitment to safety is embedded in every component, with non-combustible elements guaranteeing structural integrity throughout the system’s lifespan.
  • A1/A2 CLASSIFICATION TO EN 13501-1: Available in non-combustible Class A1 (stainless steel/anodised aluminium) and Class A2-s1,d0 (powder-coated) options, ensuring complete regulatory compliance.
  • EXCEPTIONAL STRENGTH: Our engineering team has optimised the stainless steel variants specifically to achieve remarkable load-bearing capabilities that exceed standard requirements.
  • INSTALLATION EFFICIENCY: Time-saving innovation comes built-in with our pre-fitted thermal isolation pads, significantly reducing on-site assembly time and minimising installation labour expenses.
  • SPATIAL OPTIMISATION: The inherently low thermal conductivity of our bracket technology enables reduced insulation profiles without sacrificing thermal efficiency, creating valuable space savings throughout your project.

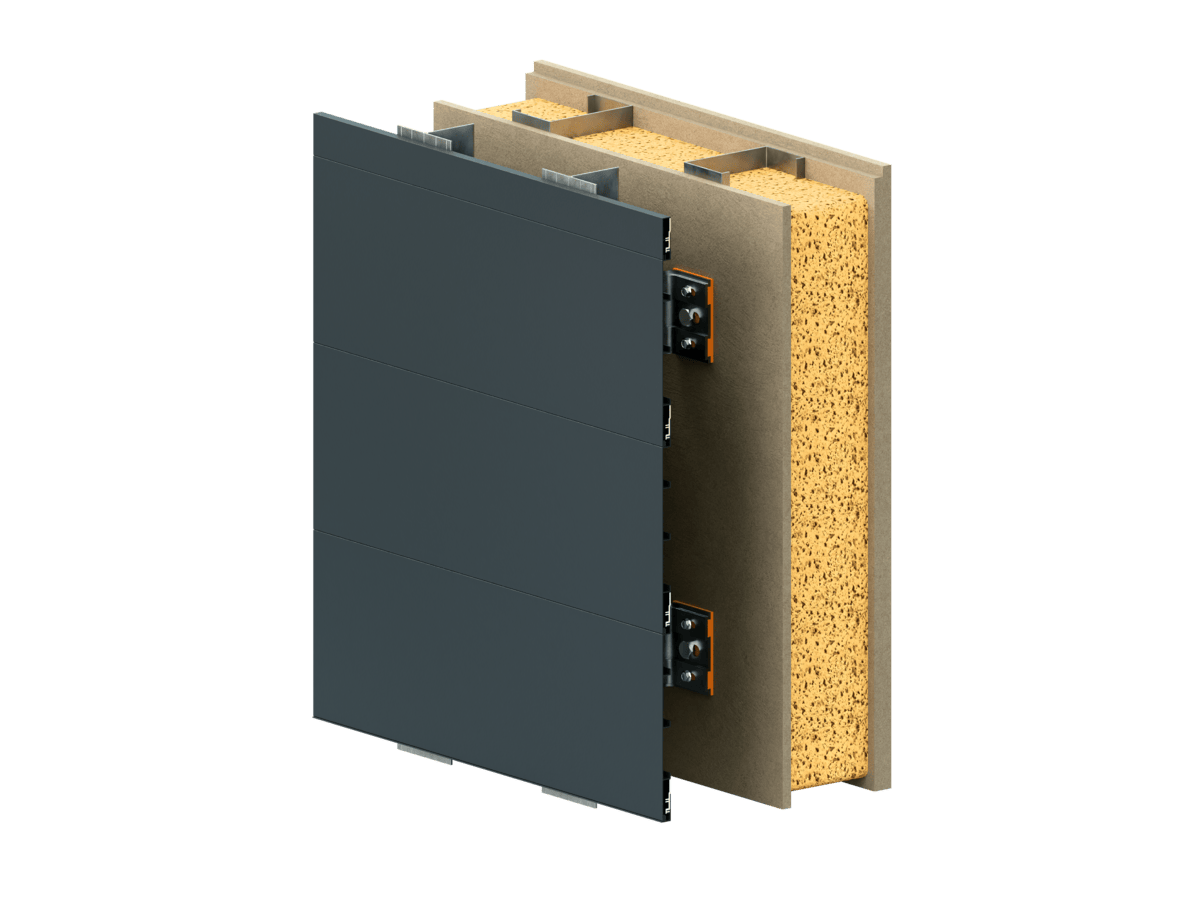

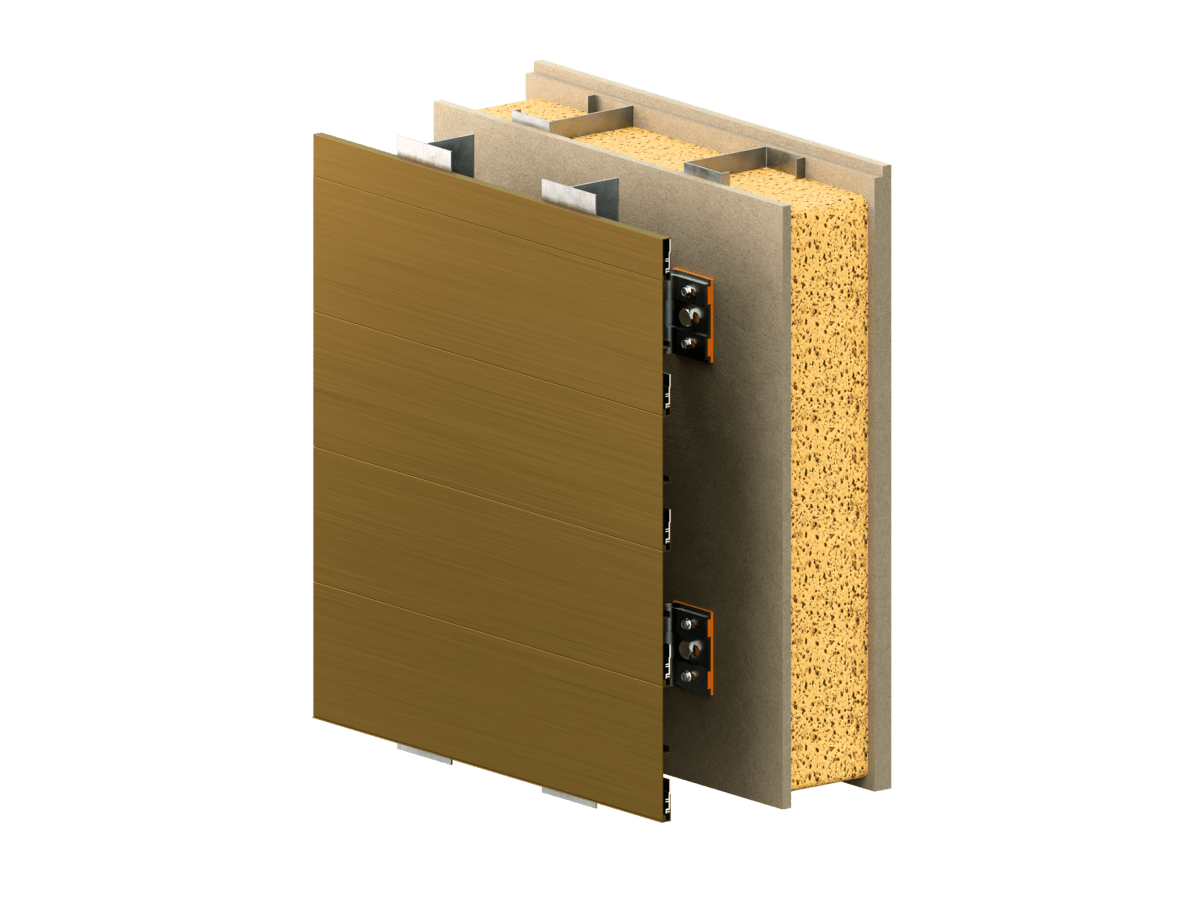

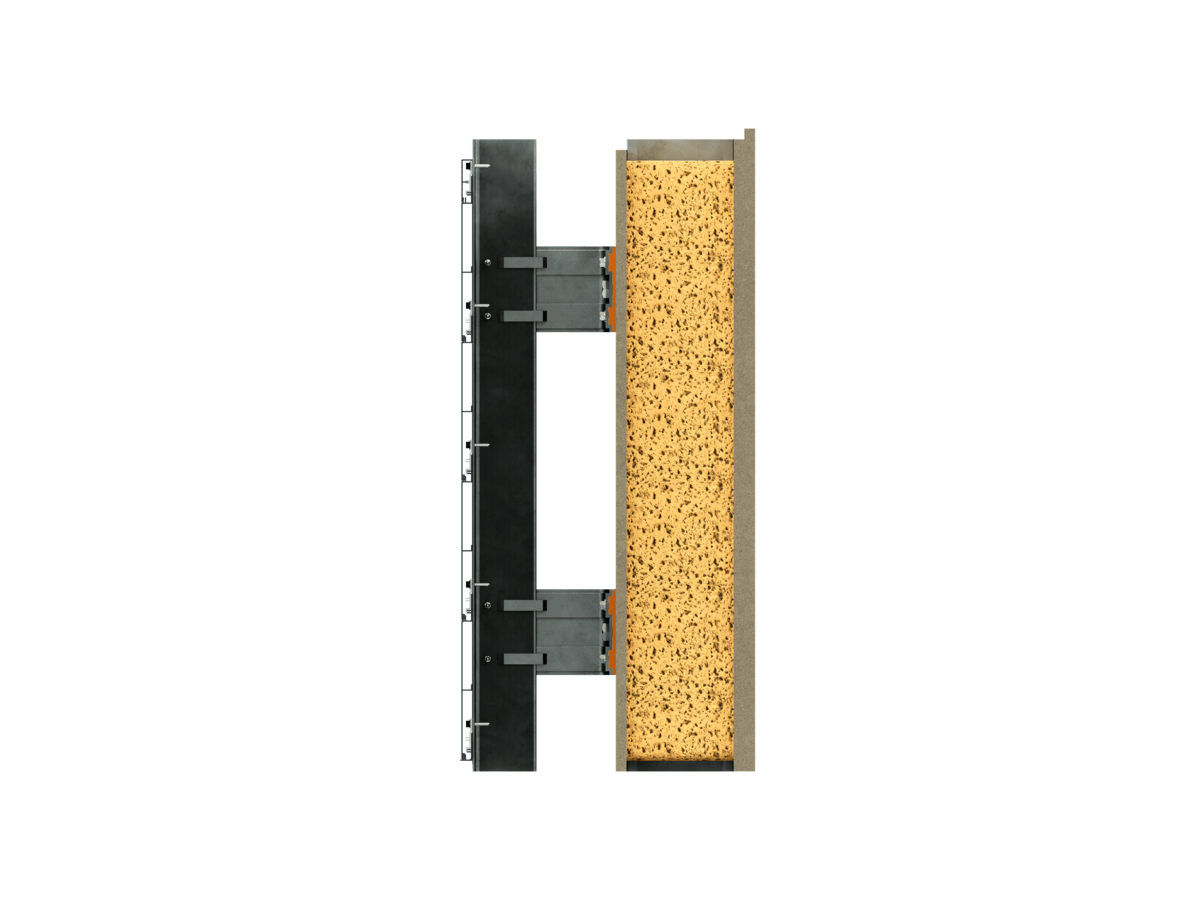

AliFacade Cladding Boards & Trims

  • Fire Safety – A1/A2 fire-rated for complete regulatory compliance

  • Quick Installation – Pre-configured for rapid, hassle-free fitting

  • Eco-Friendly – Made with up to 67% recycled 6063 T6 aluminium

  • Low Maintenance – Qualicoat powder coating requires only occasional cleaning

  • Standard Colours inc. Anodised Black, Silver, Gold & Woodgrain

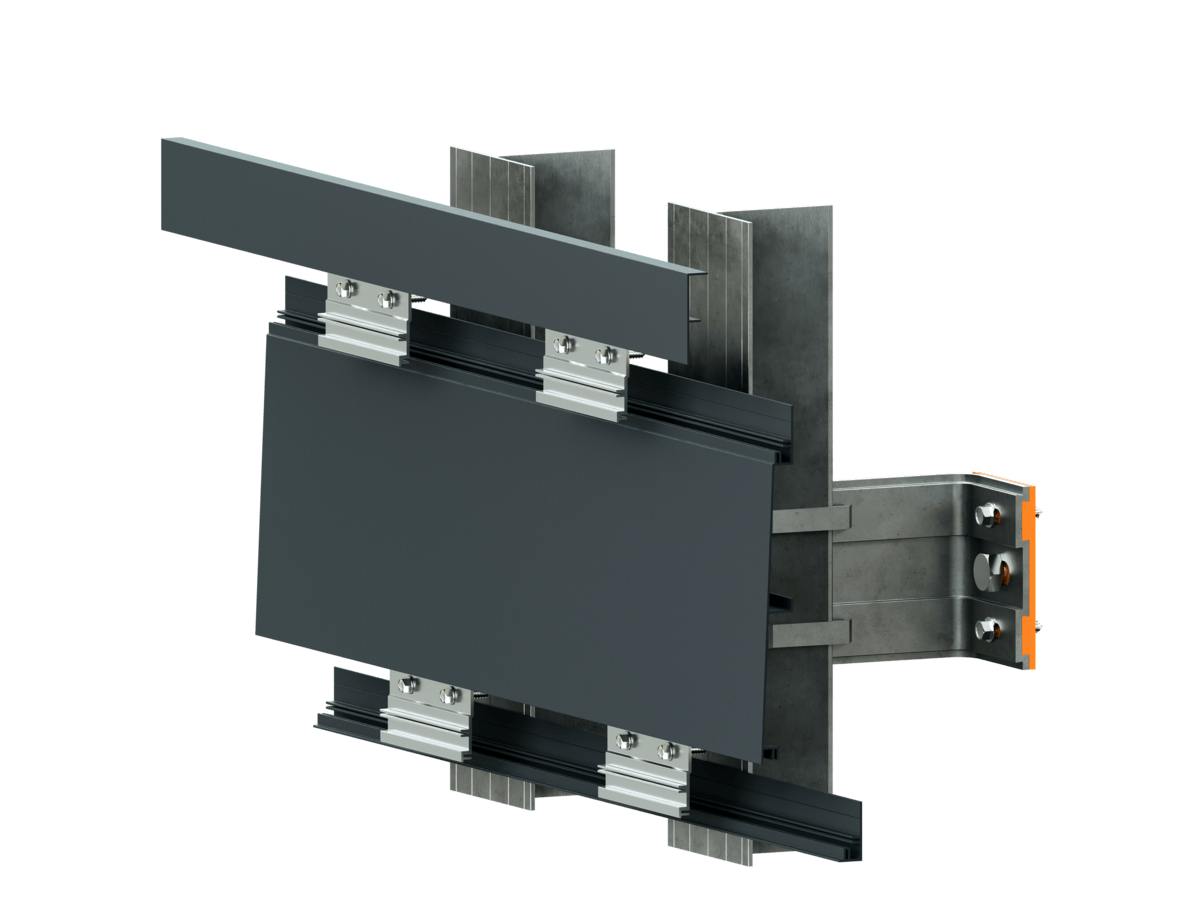

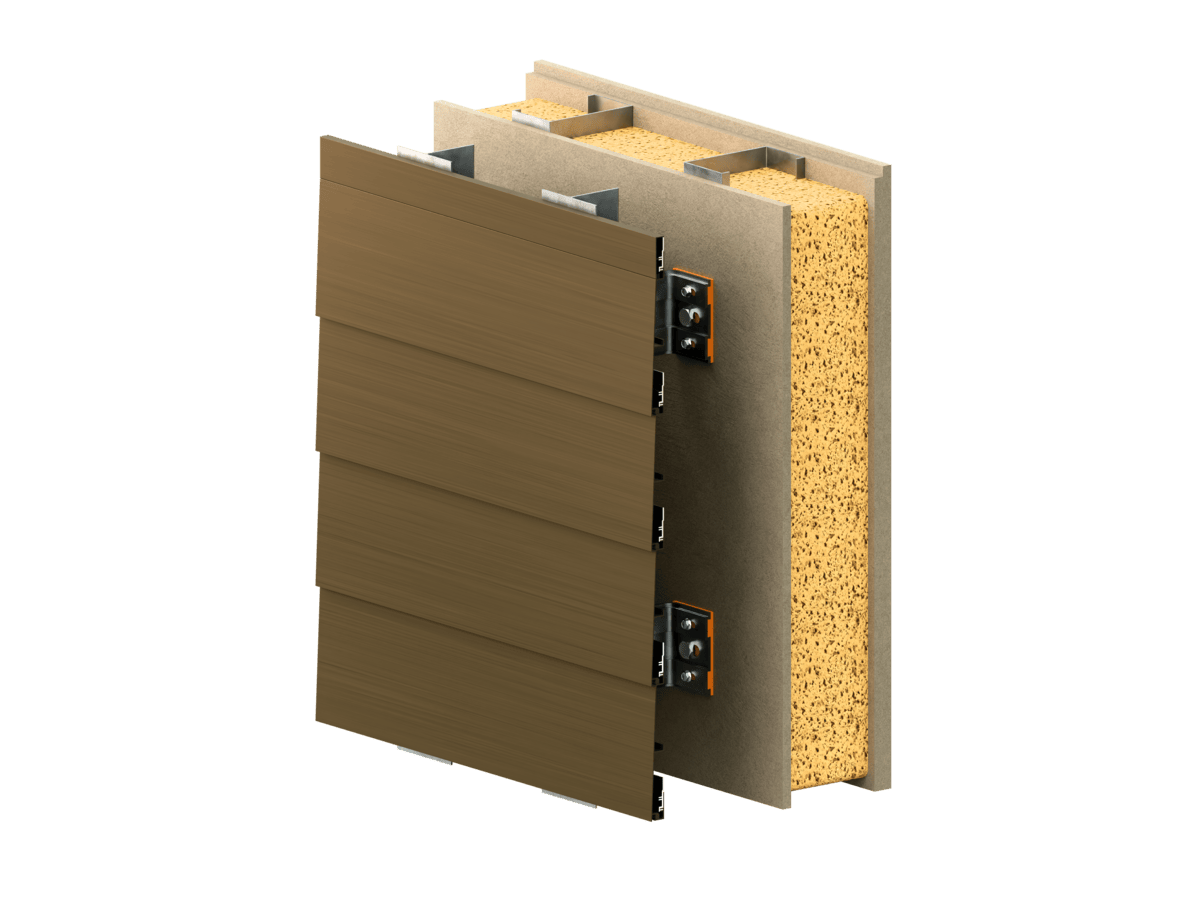

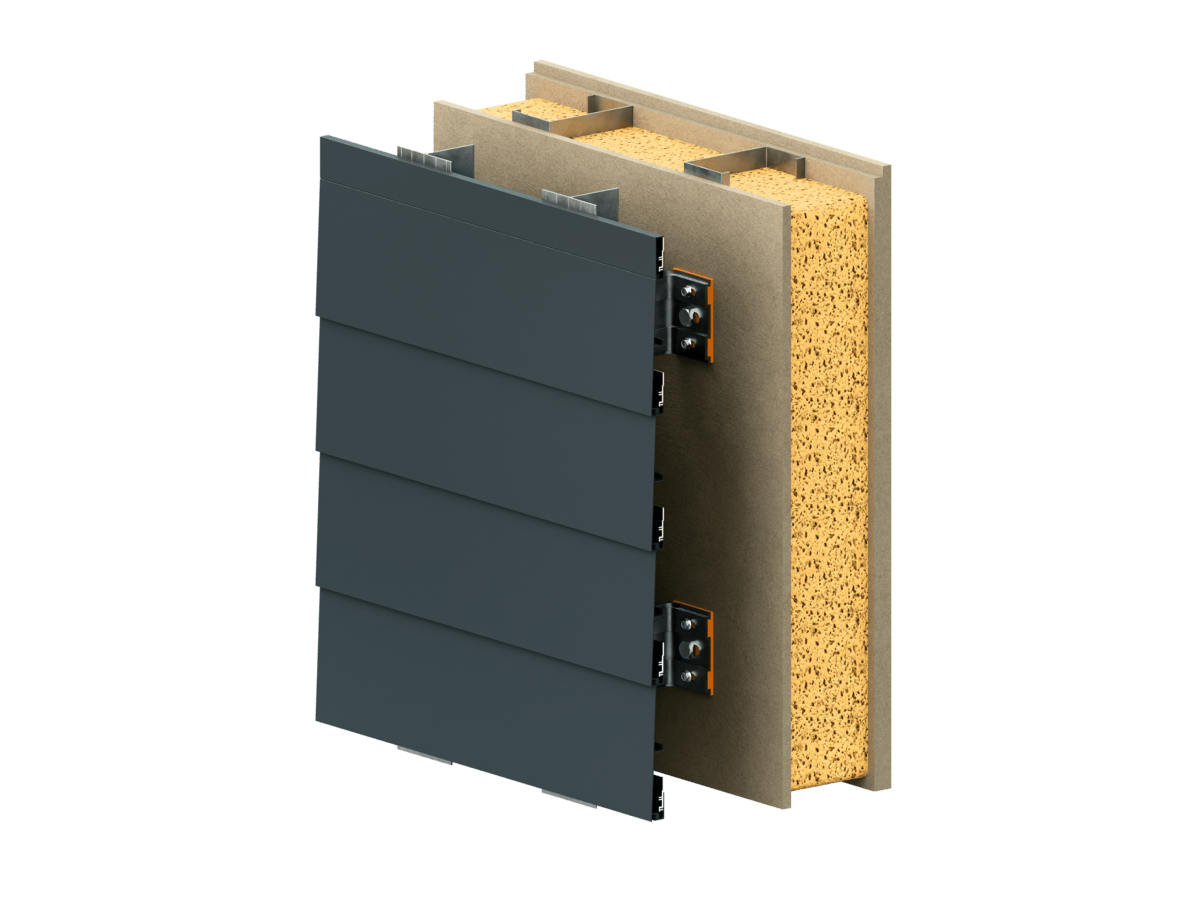

  • AliFacade Standard & Shiplap boards come complete with a 30-year warranty and a 60+ year life expectancy – click the images to enlarge!

AliFacade Rails & Brackets

  • Support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in vertical application

  • T & L profiles are fixed using support brackets, comprising fixed & flexible point options

  • Flexible point brackets allow for expansion and contraction, designed to absorb wind loads

  • Fixed point brackets absorb vertical dead loads

  • Aluminium brackets are pre-fitted with thermal isolation pads for quick assembly
  • Fire tested by Warringtonfire – Classified A1 to EN 13501-1

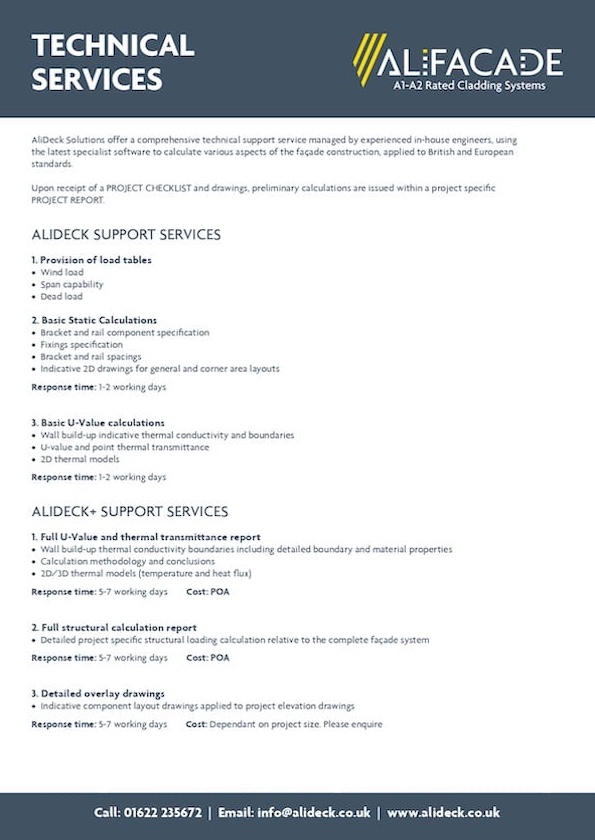

AliFacade Helping-Hand Support

AliFacade technical support services are available at an additional cost:

  • Thermal Calculations

  • Static Calculations

  • Structural Calculations

  • On‑site pull out tests

  • General technical advice

  • Indicative layout drawings

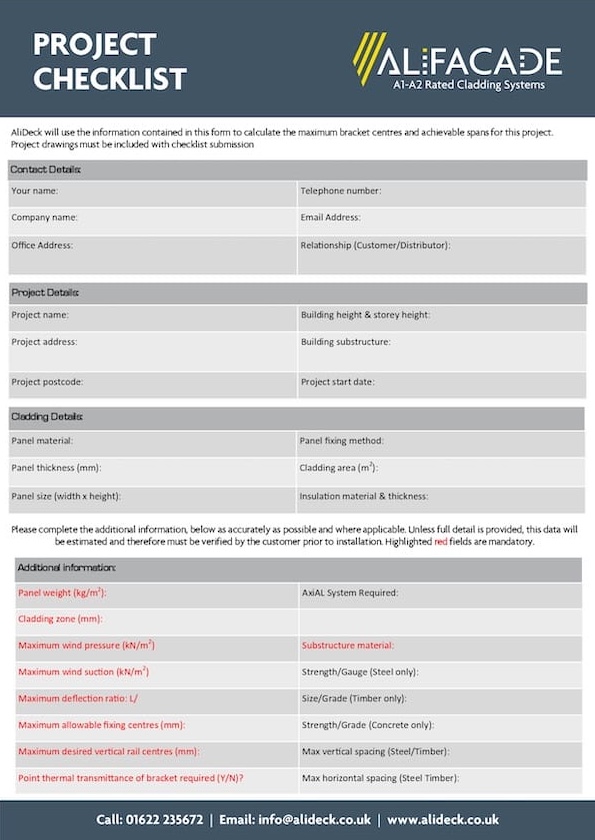

  • We understand that every project brings a new set of challenges. That is why our technical support team is set up to provide advice and design support throughout the entire development process – from architectural specification to on‑site installation on completion of a product checklist!

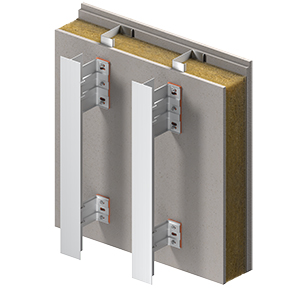

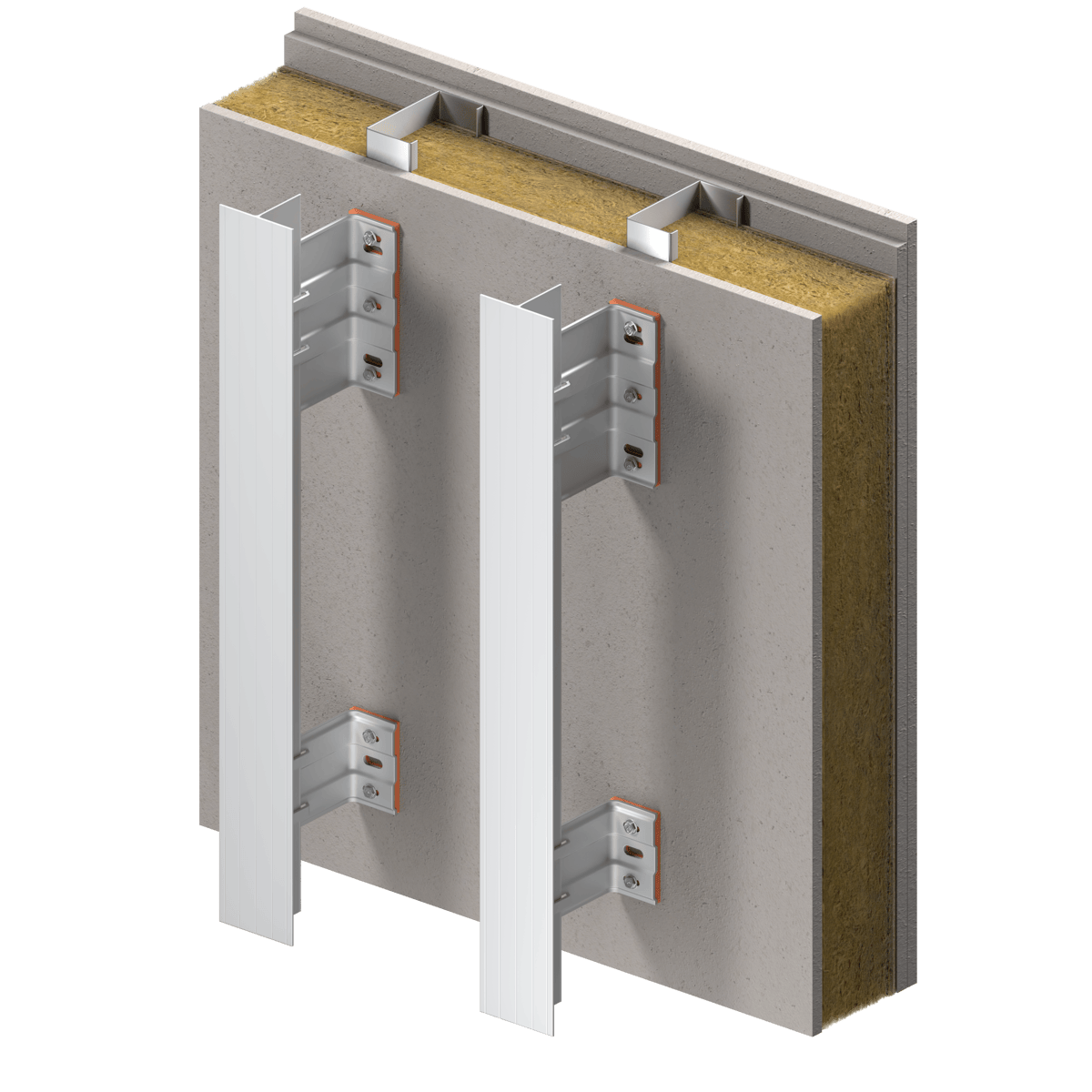

AF1 – Aluminium support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in vertical application.

AF1 Features:

  • T & L profiles are fixed using support brackets, comprising fixed & flexible point options
  • Flexible point brackets allow for expansion and contraction, designed to absorb wind loads
  • Fixed point brackets absorb vertical dead loads
  • Systems offer mill finish or powder coated aluminium components
  • Aluminium brackets are pre-fitted with thermal isolation pads for quick assembly
  • Fire tested by Warringtonfire – Classified A1 to EN 13501-1

Components:

Rails

  • L Rail AFL-L60X40X2.2
  • T Rail AFL-T60X80X2.2
  • T Rail AFL-T60X100X2.2
  • T Rail AFL-T40X100X2.2
  • T Rail T60X120X2.2

Brackets

  • Single HB Bracket + Pad – AFL-HBXXXS-TP
  • Double HB Bracket + Pad – AFL-HBXXXD-TP
  • Single SS Light HBS Bracket – AFL-HBSXXXS

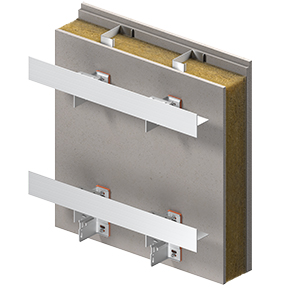

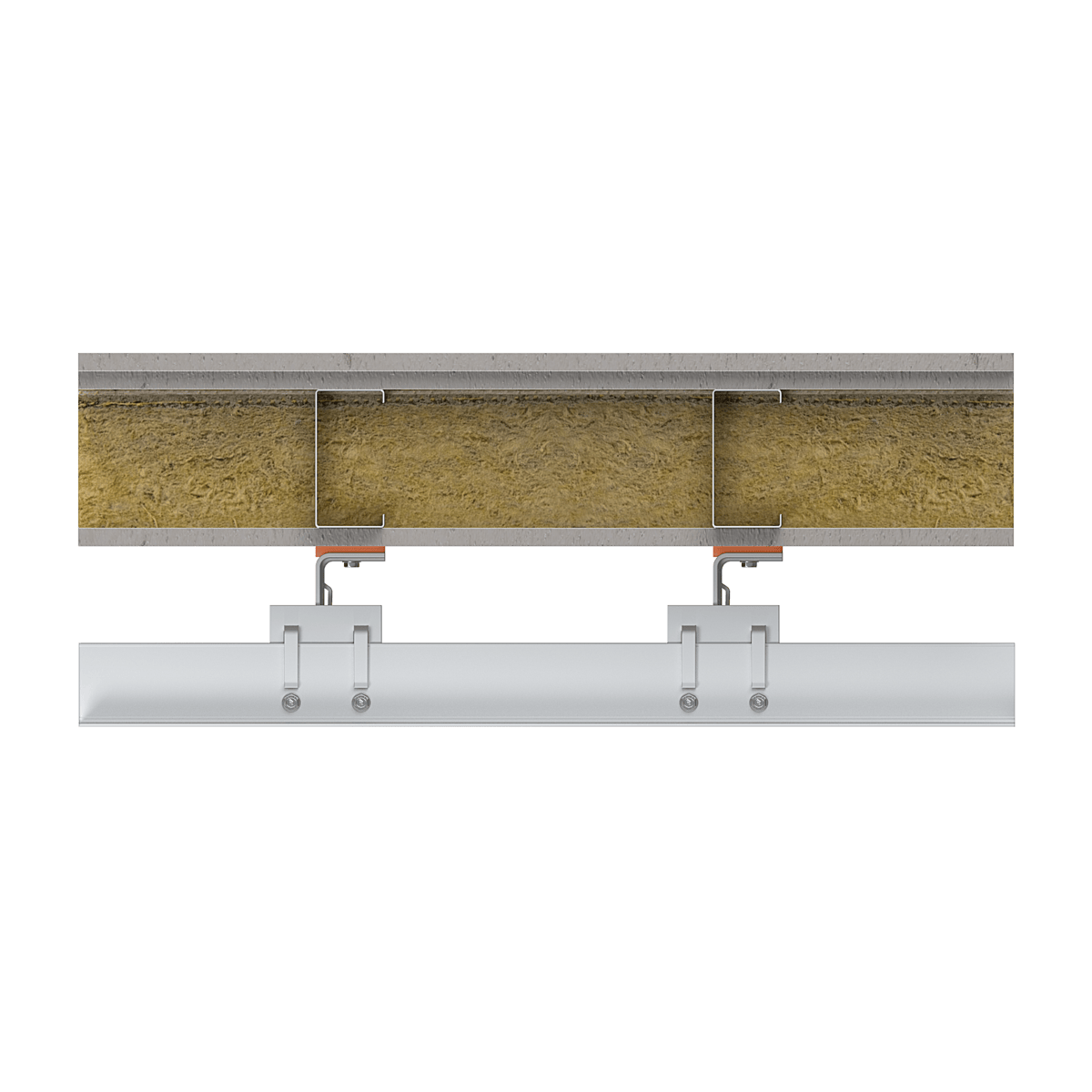

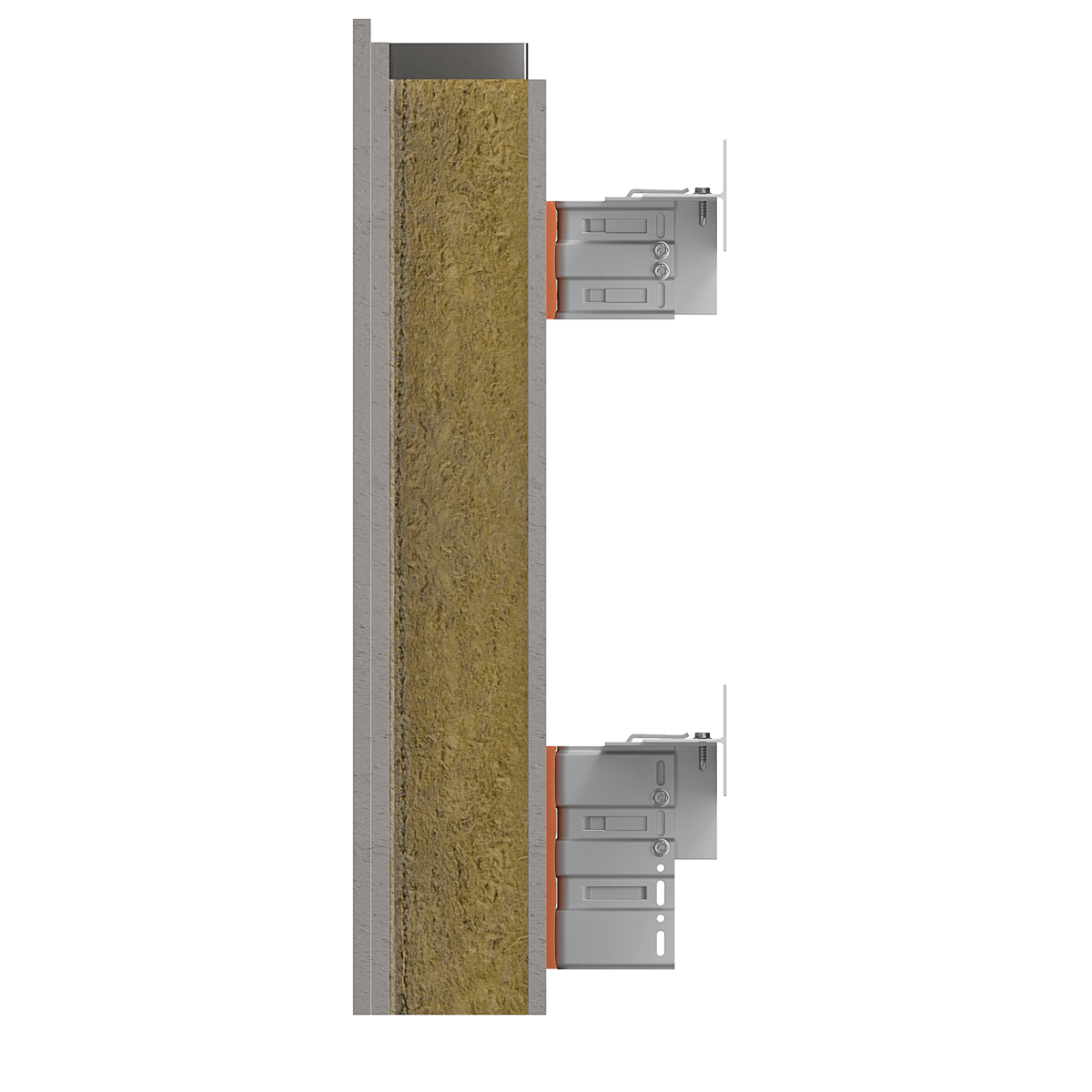

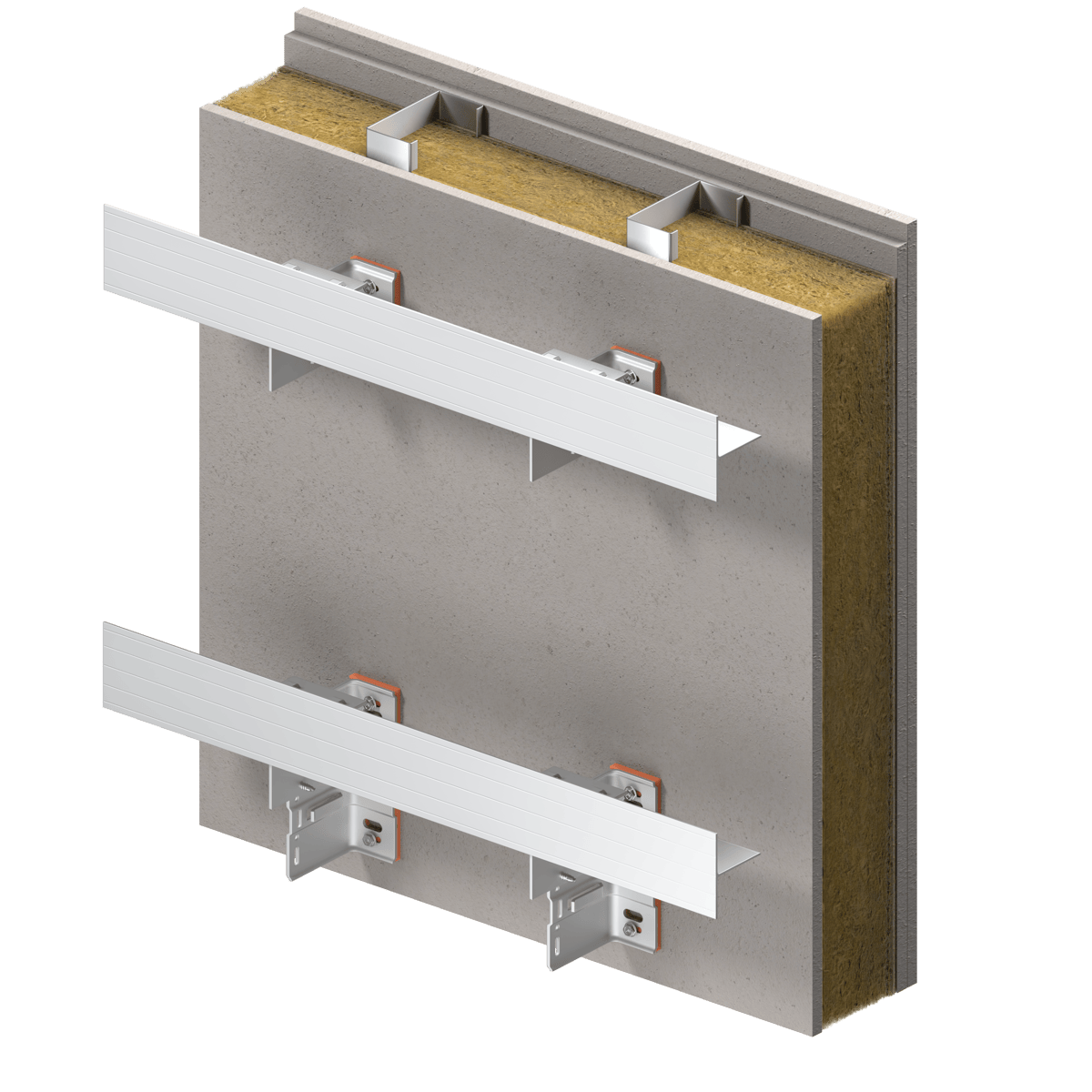

AF2 – Aluminium support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in horizontal application.

AF2 Features:

  • T & L profiles are fixed using support brackets, comprising fixed & flexible point options
  • Flexible point brackets allow for expansion and contraction, designed to absorb wind loads
  • Fixed point brackets absorb vertical dead loads
  • Systems offer mill finish or powder coated aluminium components
  • Aluminium brackets are pre-fitted with thermal isolation pads for quick assembly
  • Fire tested by Warringtonfire – Classified A1 to EN 13501-1

Components:

Rails

  • L Rail AFL-L60X40X2.2
  • T Rail AFL-T60X80X2.2
  • T Rail AFL-T60X100X2.2
  • T Rail AFL-T40X100X2.2
  • T Rail T60X120X2.2

Brackets

  • Single Adapted Horizontal Bracket – AFL-HBXXXSH2-TP
  • Double Adapted Horizontal Bracket – AFL-HBXXXDH2-TP

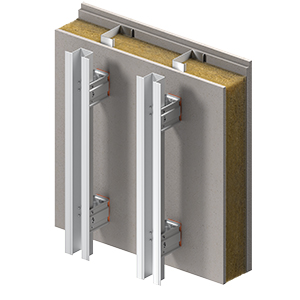

AF3 – Aluminium support system suitable for mechanical concealed fixing of horizontal and vertical application cassette panels.

AF3 Features:

  • Secure mechanical concealed panel fixing, located in the horizontal shadow joint
  • U profiles are fixed using support brackets, comprising fixed & flexible point options
  • Flexible point brackets allow for expansion and contraction, designed to absorb wind loads
  • Fixed point brackets absorb vertical dead loads
  • Systems offer mill finish or powder coated aluminium components
  • Aluminium brackets are pre-fitted with thermal isolation pads for quick assembly
  • Fire tested by Warringtonfire – Classified A1 to EN 13501-1

Components:

Rails

  • AFL-U50X50X2
  • AFL-40-OPEN
  • AFL-50-OPEN

Brackets

  • U Bracket AFL-UBXXX-TP

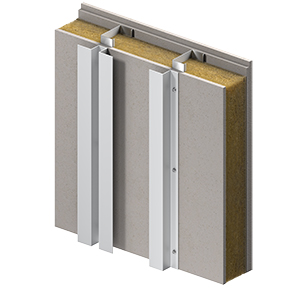

AF4 – Aluminium support system suitable for face-fix rainscreen with a shallow cladding zone and no adjustability requirement in the cladding zone.

AF4 Features:

  • Omega & Zed profiles are used at panel and corner joints respectively
  • Systems offer mill finish or powder coated steel components
  • Aluminium brackets are pre-fitted with thermal isolation pads for quick assembly
  • Fire tested by Warringtonfire – Classified A1 to EN 13501-1

Components:

Rails

  • Top Hat AFL-TH25X120X2.4
  • Top Hat AFL-TH40X140X2.4
  • Zed Rail AFL-Z25X75X2.4
  • Zed Rail AFL-Z40X85X2.4
